HLP-C
+
Inverters
C000 Main Frequency
Set Range
：
0.00~600.0Hz Unit
：
0.01 Factory Setting
：
0.00
C001 Accel. Time
Set Range
：
0.1~6500.0S Unit
：
0.1S Factory Setting
：
5.0
C002 Decel. Time
Set Range
：
0.1~6500.0S Unit
：
0.1S Factory Setting
：
5.0
IX. Description of Functions
In the digital operator method, the inverter will run at the setting
value of C000. During running, the running frequency can
be changed by pressing the ▲ or ▼ key. During multi-speed
running, the main frequency is the first speed step frequency.
In the external terminals method, if C013 is set to 1, i.e. the
running frequency is given by the potentiometer. The first
speed step is given by the potentiometer of the panel or external
potentiometer. Concrete conditions can be selectec by jump
wires of CN1.
The setting of main frequency is limited by the max. operation
frequency.

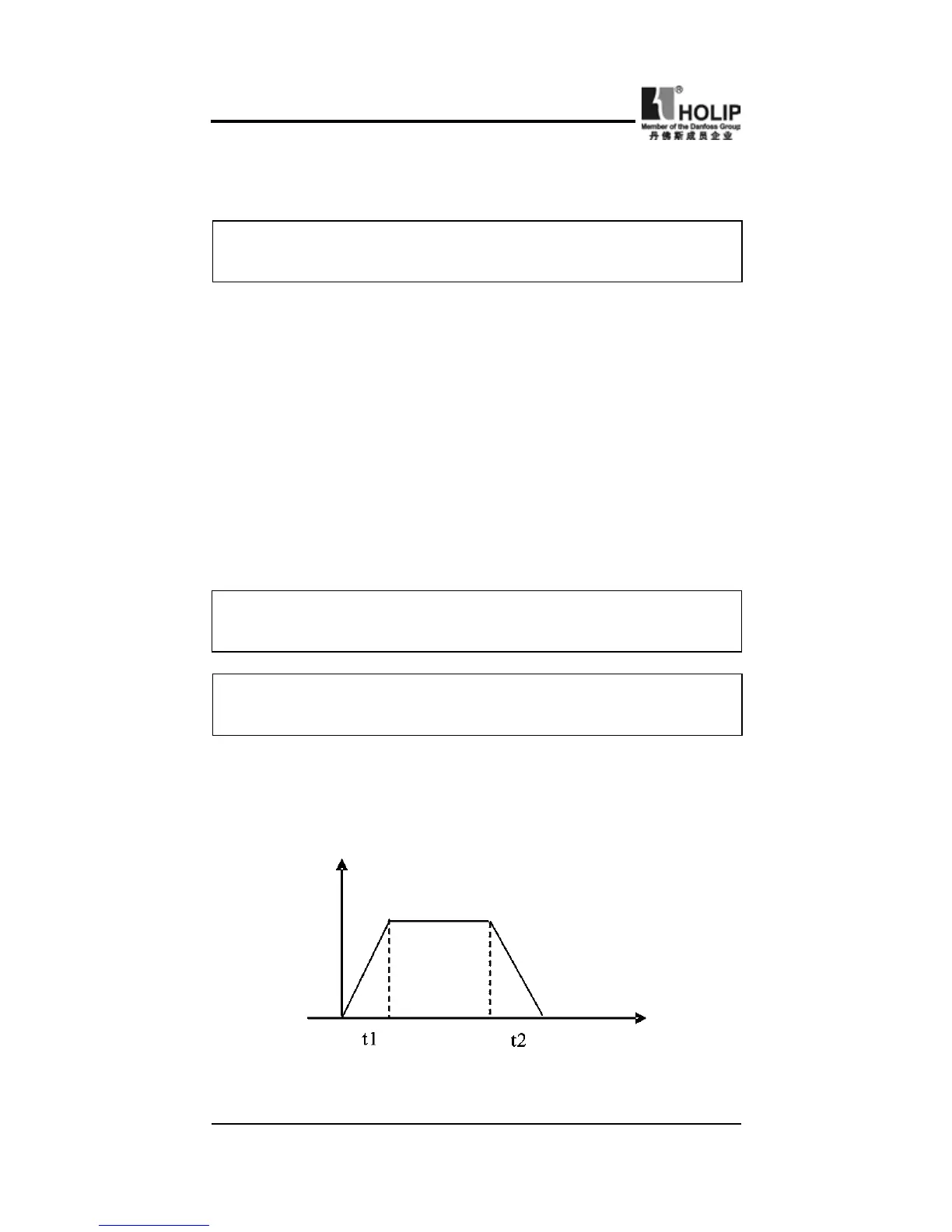

Accelerating Time means the time needed for the inverter
f re qu enc y f rom 0H z to 50H z (Se e t1 i n th e d ia g ra m).
Decelerating Time means time needed for inverter frequency
from 50Hz to 0Hz(See t2 in the diagram)
HLP-C
+
Series inverter have 4 Accel/Decel Times. For Accel/
Decel Time 2.3.4 the different accelerating and decelerating
