- 31 -
HLP-C
+
Inverters

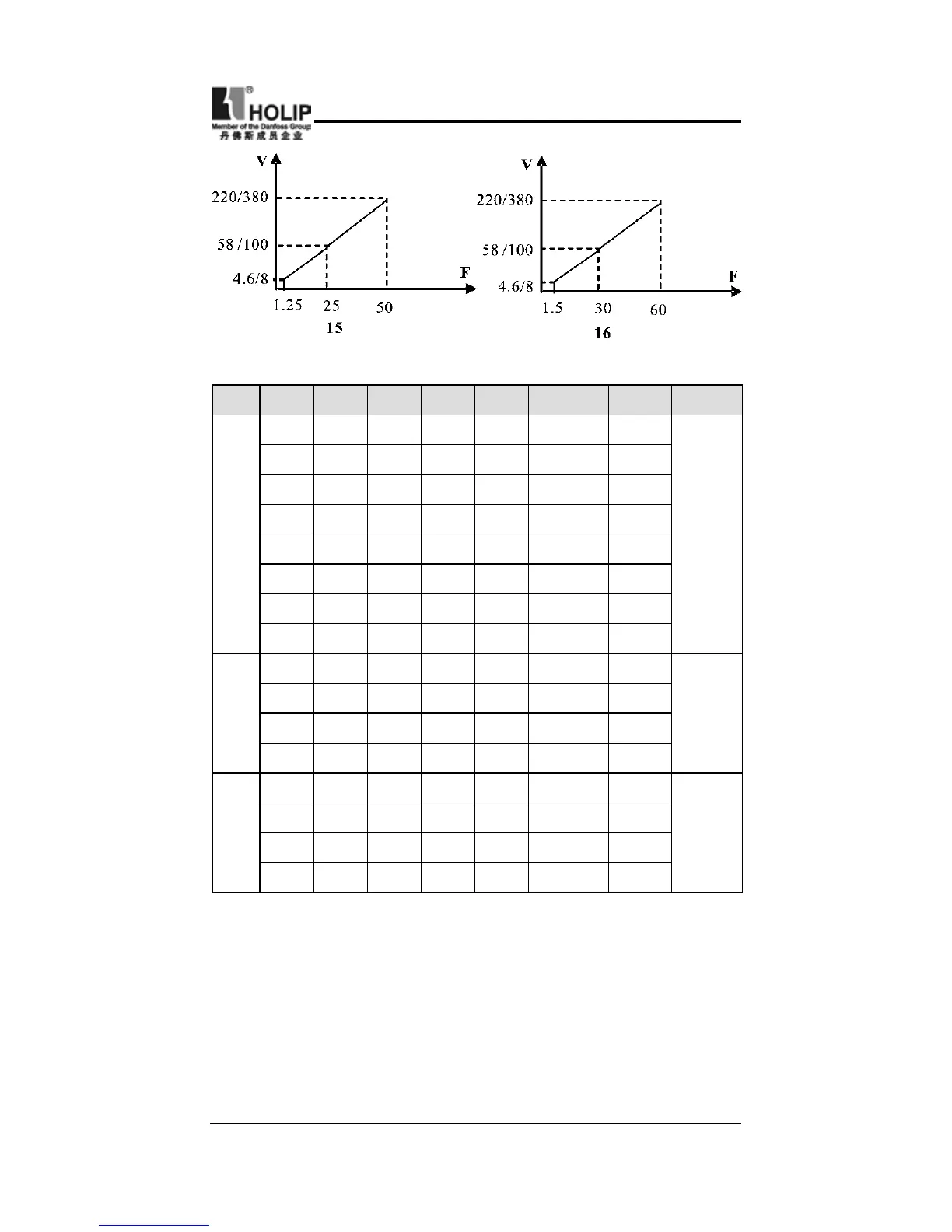

Given values for the inverter of 230V/400V class
：
Use C003 C010 C005 C007 C009 C006 C008
Remarks
1 50 50 2.5 1.25 8.6/15 5.2/9
→
2 60 60 3.0 1.5 8.6/15 5.2/9
3 60 50 2.5 1.25 8.6/15 5.2/9
4 72 60 3.0 1.5 8.6/15 5.2/9
5 75 50 2.5 1.25 8.6/15 5.2/9
6 90 60 3.0 1.5 8.6/15 5.2/9
7 100 50 2.5 1.25 8.6/15 5.2/9
8 120 60 3.0 1.5 8.6/15 5.2/9
9 50 50 2.5 1.25 11.5/19.9 5.7/9.9
10 60 60 3.0 1.5 11.5/19.9 5.7/9.9
11 50 50 2.5 1.25 14.4/25 8.6/15
12 60 60 3.0 1.5 14.4/25 8.6/15
13 50 50 25 1.25 28.9/50 4.6/7.9
14 60 60 30 1.5 28.9/50 4.6/7.9
15 50 50 25 1.25 57.9/100 4.6/7.9
16 60 60 30 1.5 57.9/100 4.6/7.9
( )
( )
Constant Torque
Start High
Fan Model
While restoring the factory settings, default of Curve 1 or 2 is
related to the setting value of C125. When C125 is set to 0, the
factory value is restored and the default of C003 is 1, while C125
is set to 1, the factory value is restored and the default of C003 is 2.
The relevant parameters refer to the explanation of C125.
After the determination of 16 curves, C004, C005, C006, C007,
C008, C009 still can be adjusted and set. C016 is for checking the
setting.
