6
.
Programming
6.2
.
Conf
igurin
g A/D module t
hrough progra
m method
110
Analog Input
Module
2MLF
-
A
V8A, AC8A
User's Guide
R
200
Honeywell
September 20
10
6.2
Configuring A/
D module
throug
h
p
rogram met
hod
2MLF
-
AV8A

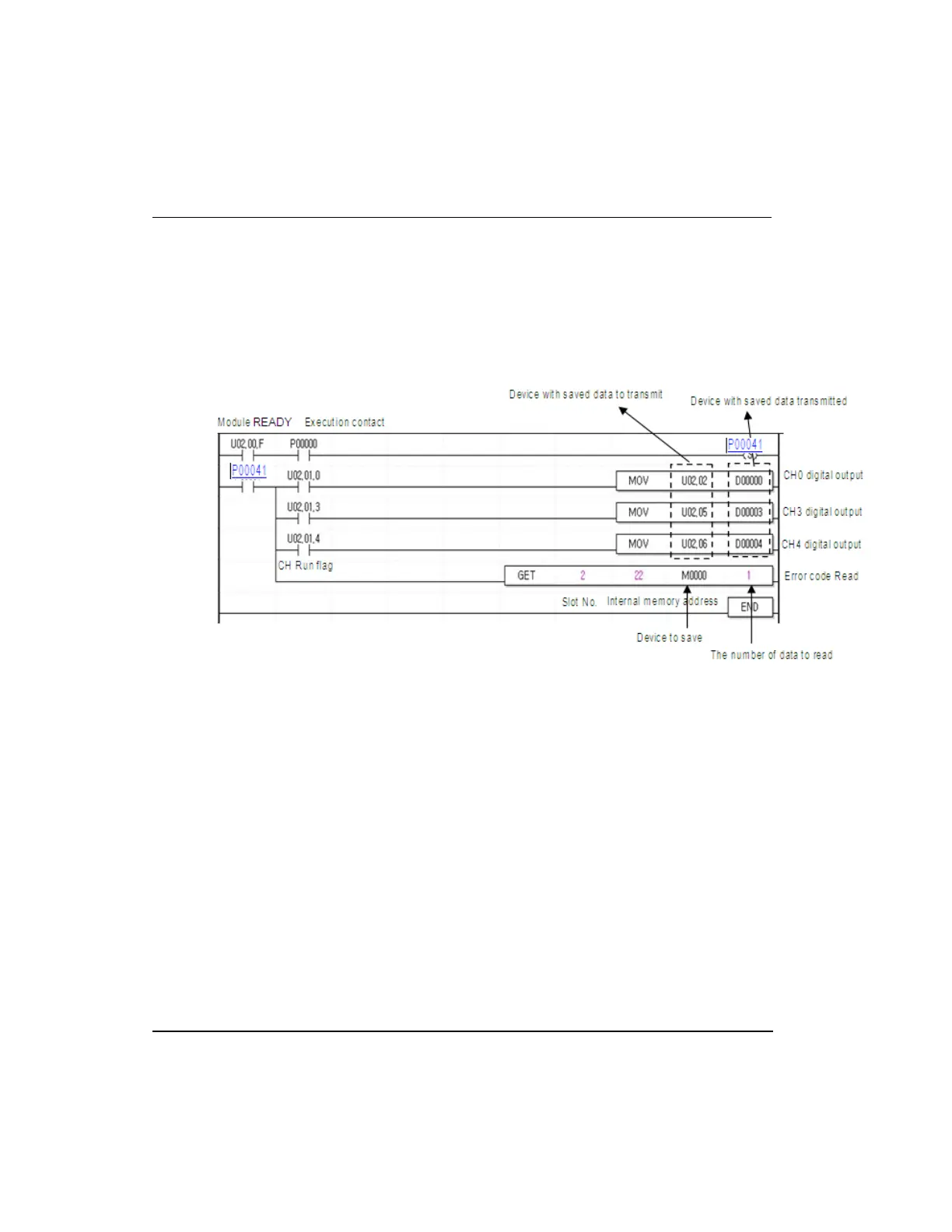

1.
This program example accesses the A/D conversion val
u
e from CPU memory
U02.02~
U02.0
9 (Base 0, Slot 2)
and
directly reads the error code from Address 2
2
in the
module.
109
111
