6
.
Programming
6.4
.
Applicat
ion program e
xamples
124
Analog Input
Module
2MLF
-
A
V8A, AC8A
User's Guide
R
200
Honeywell
September 20
10
Program to output
error codes
of
analog input m
odule to BCD
d
isplay

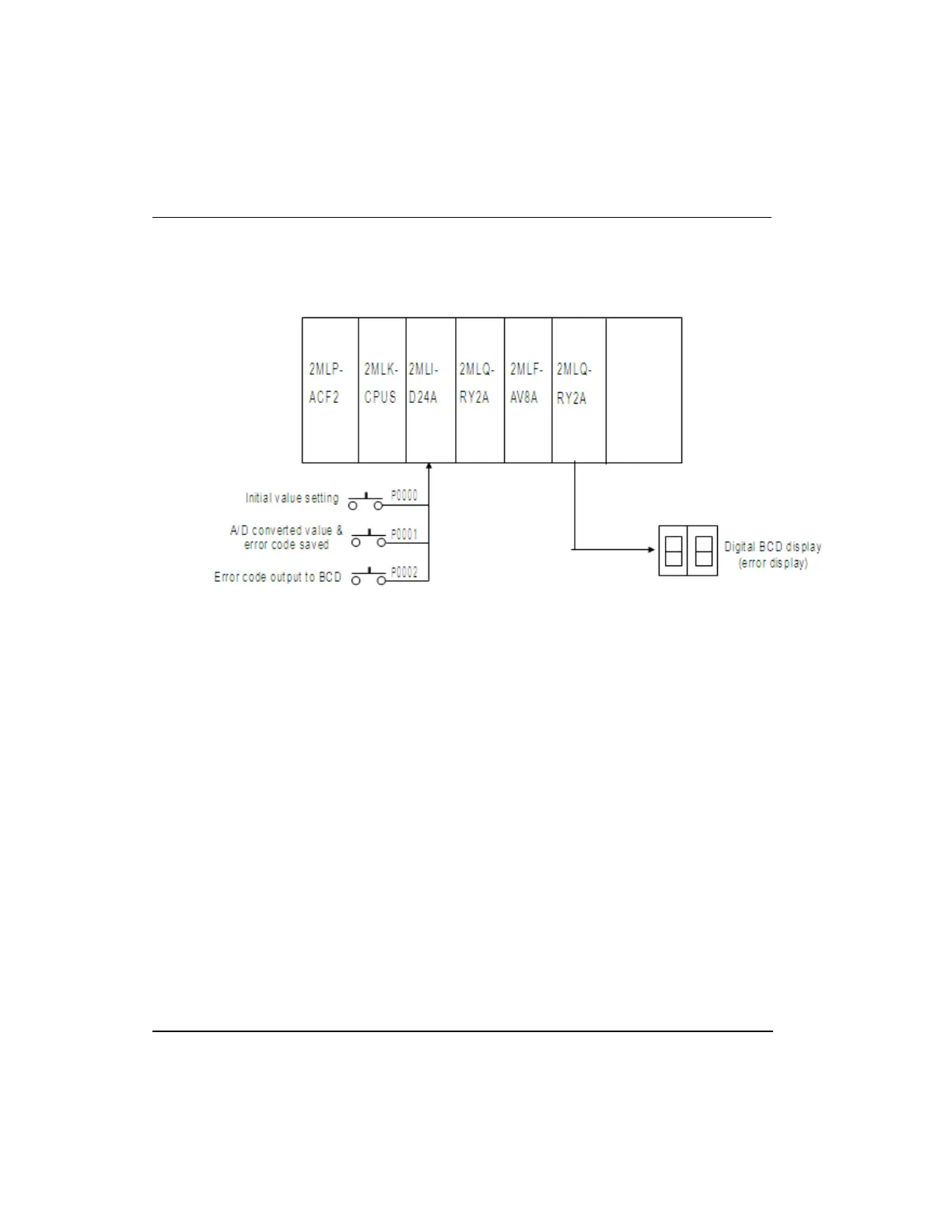

The follow
ing figure s
hows system co
nfiguration.
Details of initial sett
ing
1.
Used CH: C
H 0
2.
Analog i
nput current
range:
DC 4 ~ 20mA
3.
Time average process
setting: 100ms
4.
Digital output data range: 0 ~ 16000
123
