`4. Operating Procedures and Monitoring
4.3. Special module monitoring
R200 Analog Input Module 2MLF-AV8A, AC8A User's Guide 61
September 2010 Honeywell
4.3 Special module monitoring
The special module monitoring function helps you to monitor the analog input modules
for testing. It also helps in tuning parameters like average processing constants.
To monitor and test the module, perform the following steps.
Step Action
1
Click Online > Connect. The SoftMaster is connected to PLC.
2
Click Monitor> Special Module Monitoring. The Special Module List
window appears. This window displays base/slot information in addition to
special module type.
ATTENTION
If the module status is not Online, the Special Module Monitoring
menu is disabled.
3

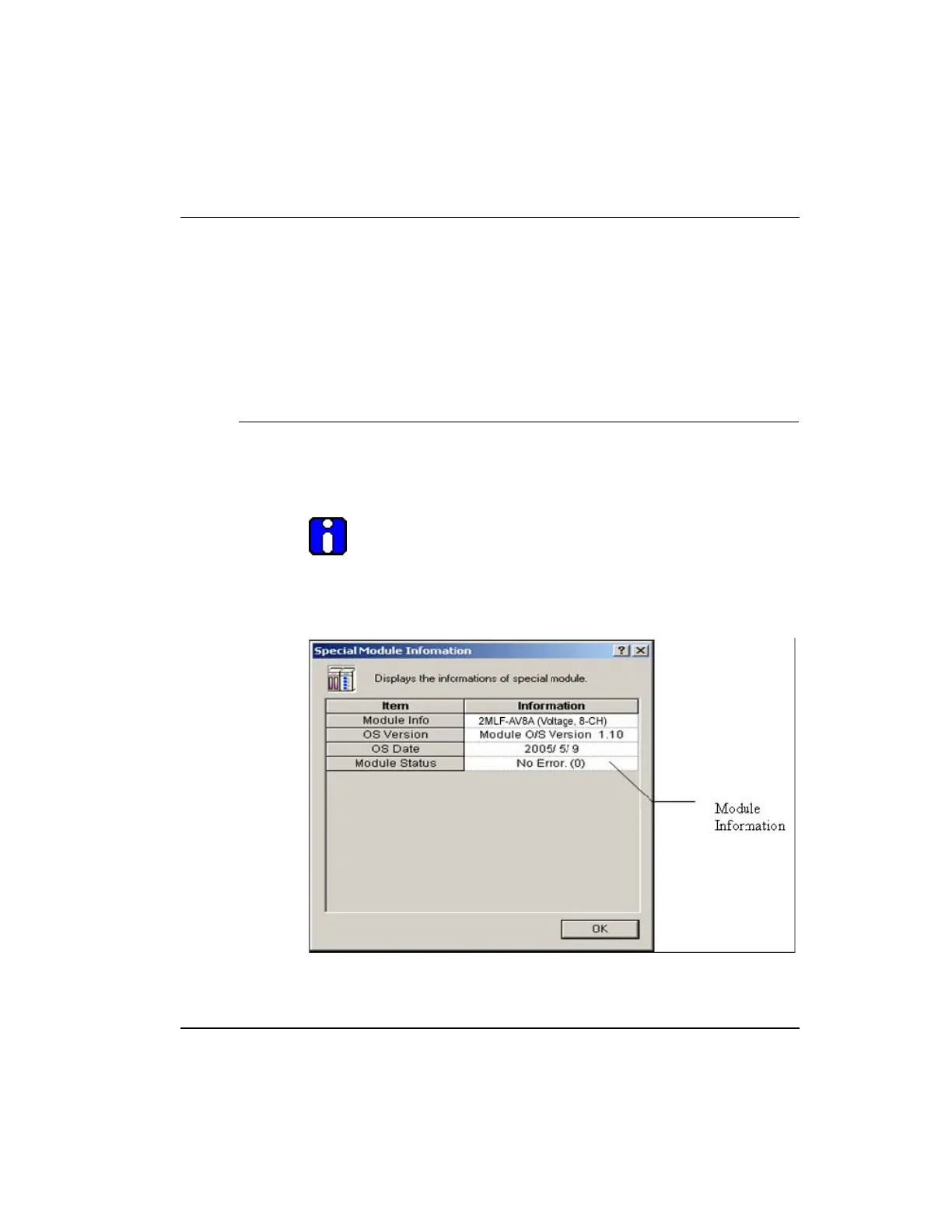

Click Module Info to display the module information as shown in the following
figure.
4
On the Special Module List window, select the module and click Monitor.
The Monitor Special Module window appears.
