2. Specifications
2.3. Characteristics of I/O conversion
R200 Analog Input Module 2MLF-AV8A, AC8A User's Guide 33
September 2010 Honeywell

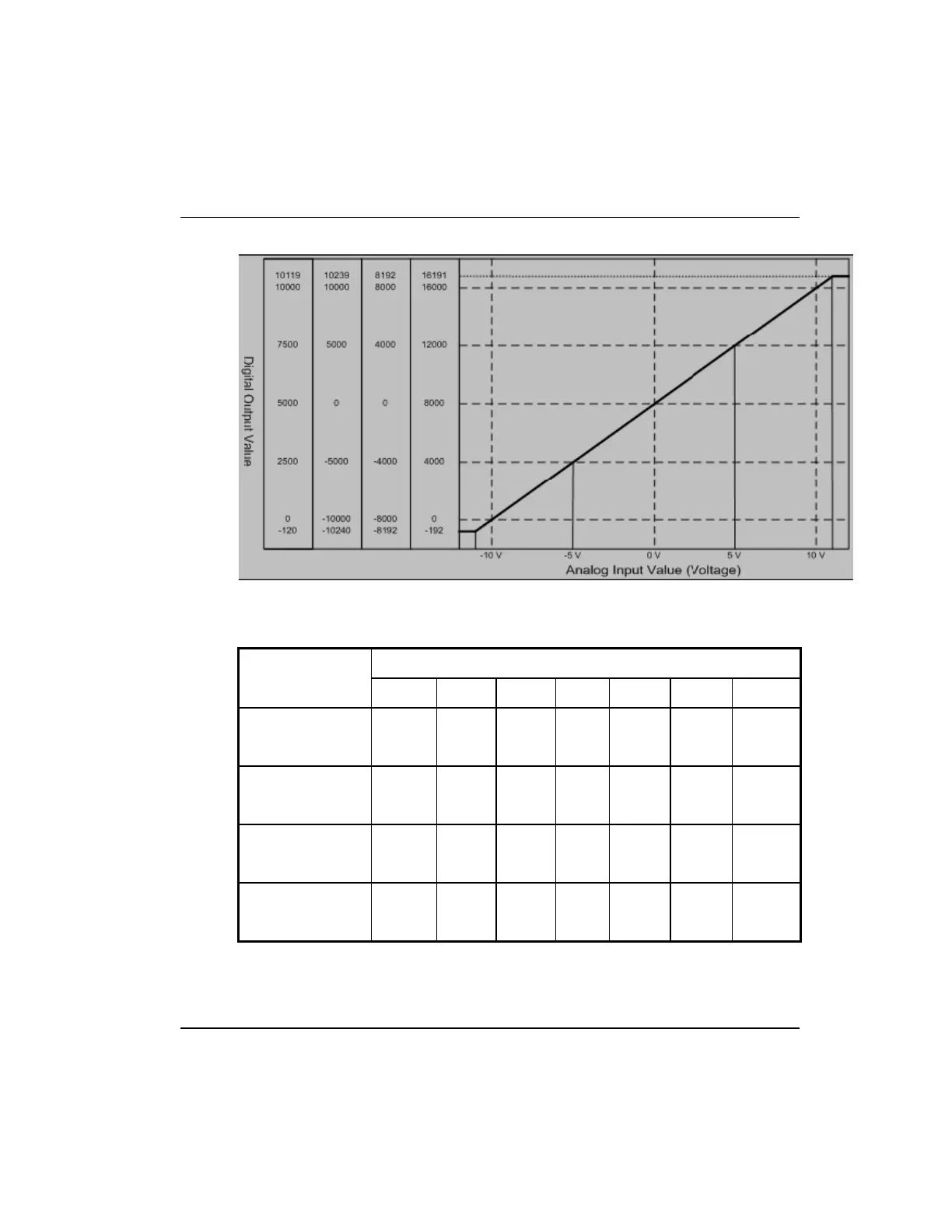

Digital output value for voltage input characteristics is as specified below.
(Resolution (based on 1/16000): 1.25mV)
Digital output
range
Analog input voltage (V)
-0.24 -10 -5 0 5 10 10.23
Unsigned value
(-192 ~ 16191)
-192 0 4000 8000 12000 16000 16191
Signed value
(-8192 ~ 8191)
-8192 -8000 -4000 0 4000 8000 8191
Precise value
(-10240 ~ 10238)
-10240 0 2500 5000 7500 10000 10239
Percentile value
(-120 ~ 10119)
-120 0 2500 5000 7500 10000 10119
I/O characteristics of 2MLF-AC8A
You can set the current input range through user program or special module package for
respective channels. Output formats of digital data are as specified below:
