5. Configuration and Function of Internal Memory
5.3. Operation parameters settings area
80 Analog Input Module 2MLF-AV8A, AC8A User's Guide R200
Honeywell September 2010

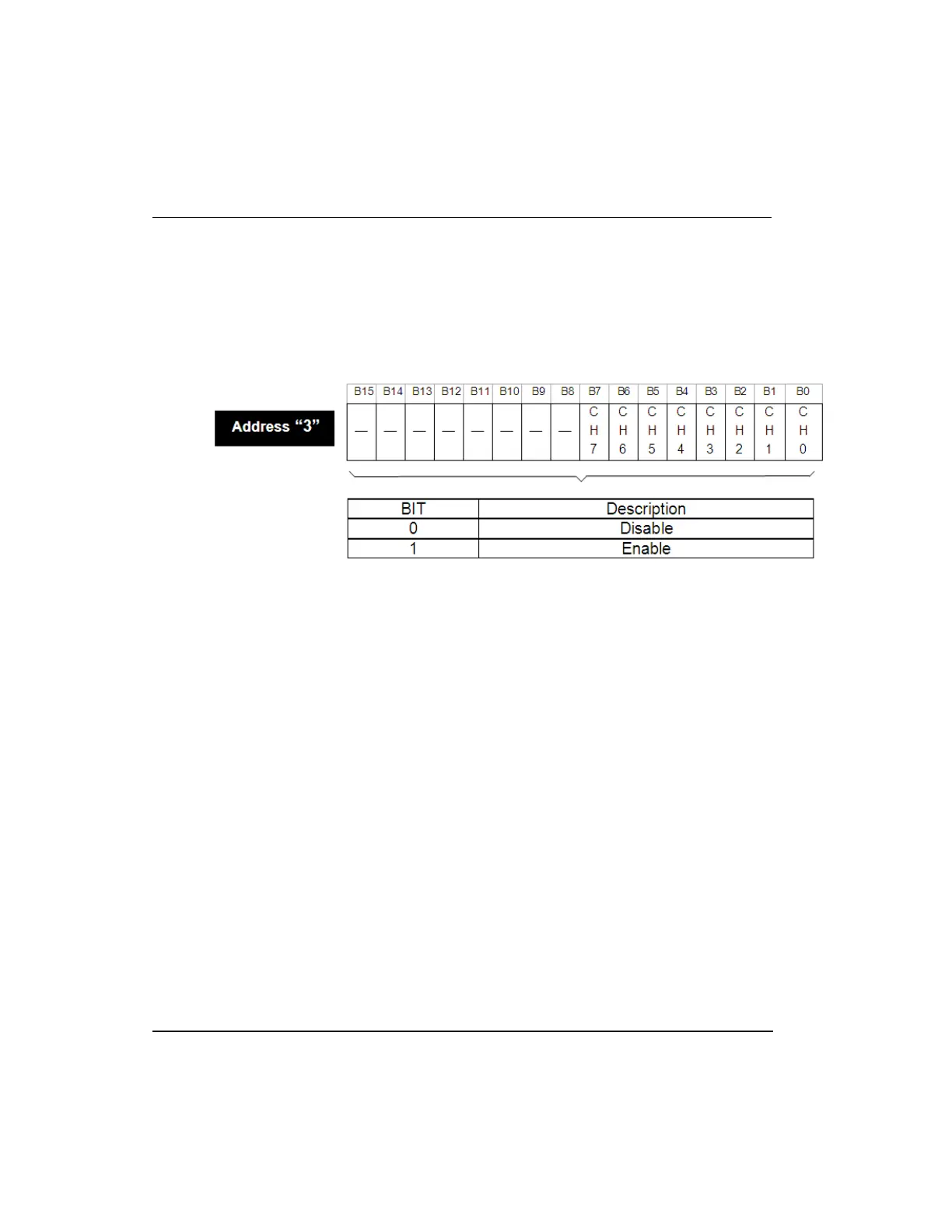

Address 3 - Filter process Enable/Disable
The Enable/Disable status of filter process is specified for each channel.
1. If the filter process is not specified, all the channels are sampled.
2. Setting of the filter process is as explained below.
Address 4-11 - Filter constant
Default value of the filter constant is 1. Setting range for the filter constant is 1 ~ 99.
If any other value exceeding the setting range is specified, error code 50# is displayed on
error code address 22.
If the filter constant is not specified, the filter constant is set to ‘1’.
Setting of the filter constant is as explained below.
To Next Page
