2. Specifications
2.3. Characteristics of I/O conversion
32 Analog Input Module 2MLF-AV8A, AC8A User's Guide R200
Honeywell September 2010
Digital output value for voltage input characteristics is as specified below:
(Resolution (based on 1/16000): 0.625mV)
Digital output
range
Analog input voltage (V)
-0.12 0 2.5 5 7.5 10 10.11
Unsigned value
(-192 ~ 16191)
-192 0 4000 8000 12000 16000 16191
Signed value
(-8192 ~ 8191)
-8192 -8000 -4000 0 4000 8000 8191
Precise value
(-60 ~ 5059)
-120 0 2500 5000 7500 10000 10119
Percentile value
(-120 ~ 10119)
-120 0 2500 5000 7500 10000 10119

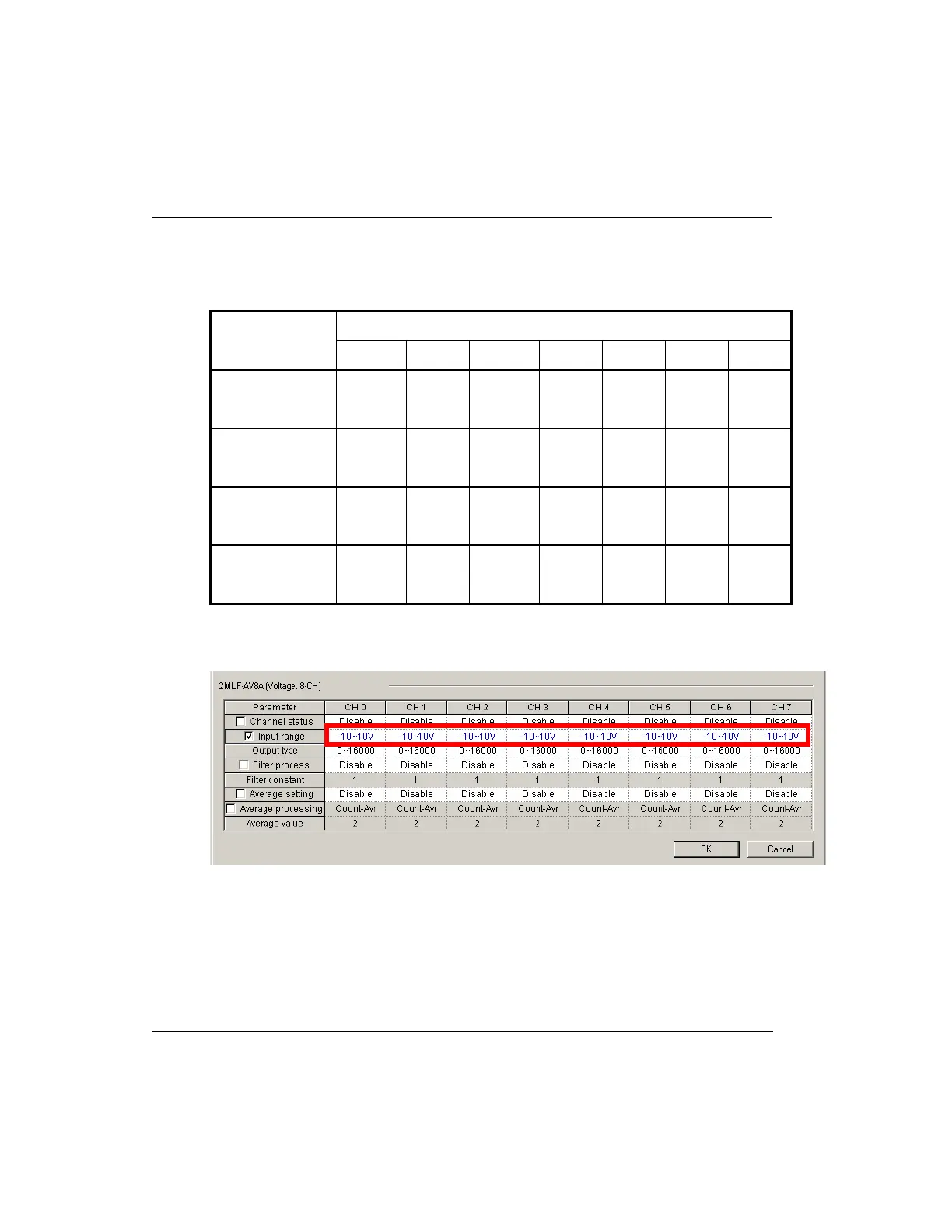

4. If the range is DC-10 ~ 10V
On I/O Parameters Setting window, set Input Range to -10 ~ 10V.
