Extinguishing Control Computer 8010 – 19-Inch
FB 798955.GB0 / 09.07 29

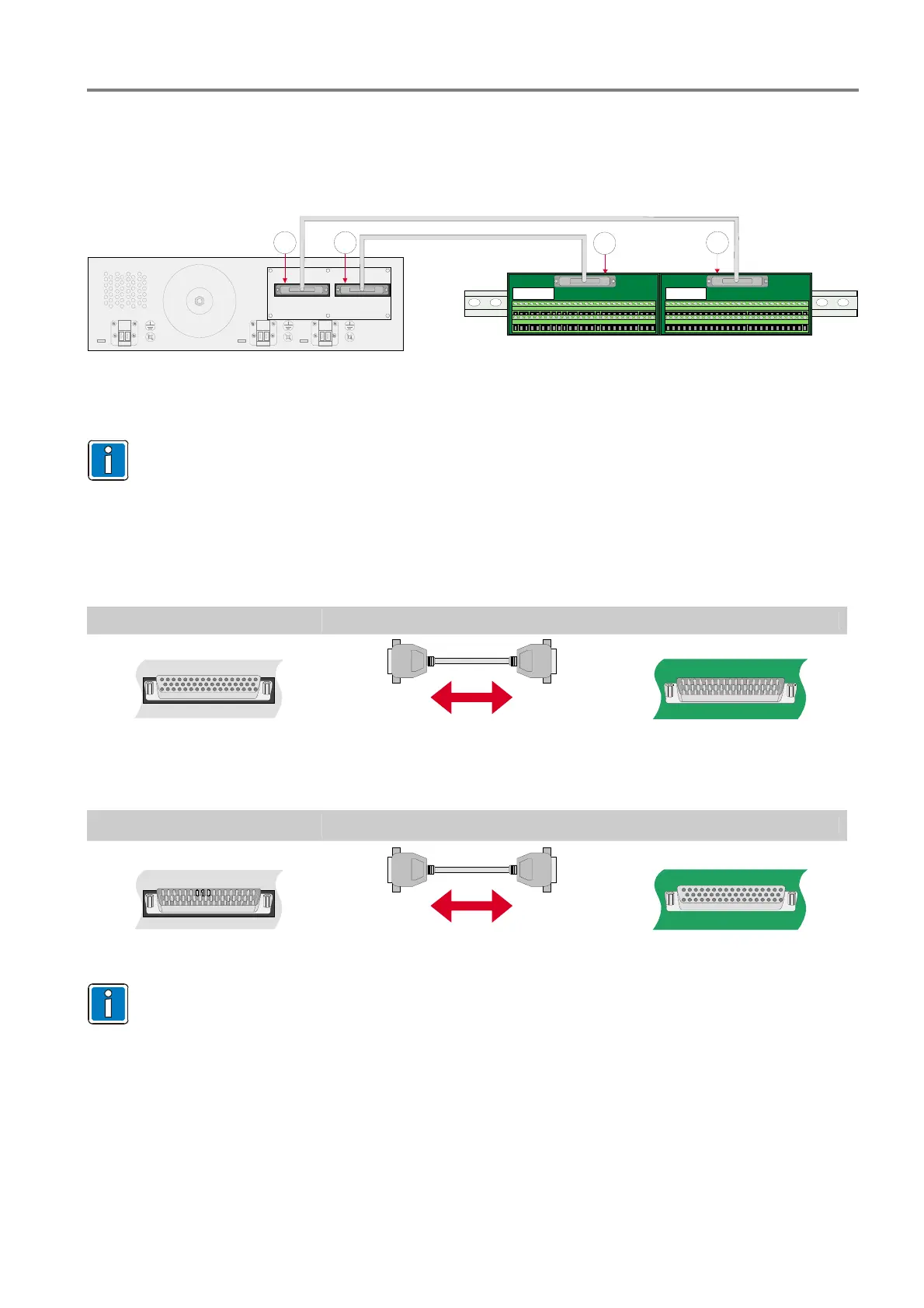

The D-SUB plugs on the housings rear side are connected via a 50-pole cable (length 1m or 2m) with the
external terminal card on the C-rail.
11 2
2
Observe the different connectors for zones
c (D-SUB jack) and relays d (D-SUB plug) at the
housings rear side when connecting the external terminal card.
Zone terminal card
c Zones
Cable length 2m Zone terminal card
50-pole Î D-SUB jack 50-pole Î D-SUB plug
Relay terminal card
d Relays
Relay terminal card
50-pole Î D-SUB plug 50-pole Î D-SUB jack
All required terminals are located on the external terminal card. The connection of cables to the
separate circuit boards inside the housing of the Extinguishing Control Computer 8010 is not
necessary.
