INTELLIDOX DOCKING MODULE USER MANUAL || PREPARE MODULES FOR USE
HONEYWELL PAGE 32 OF 119

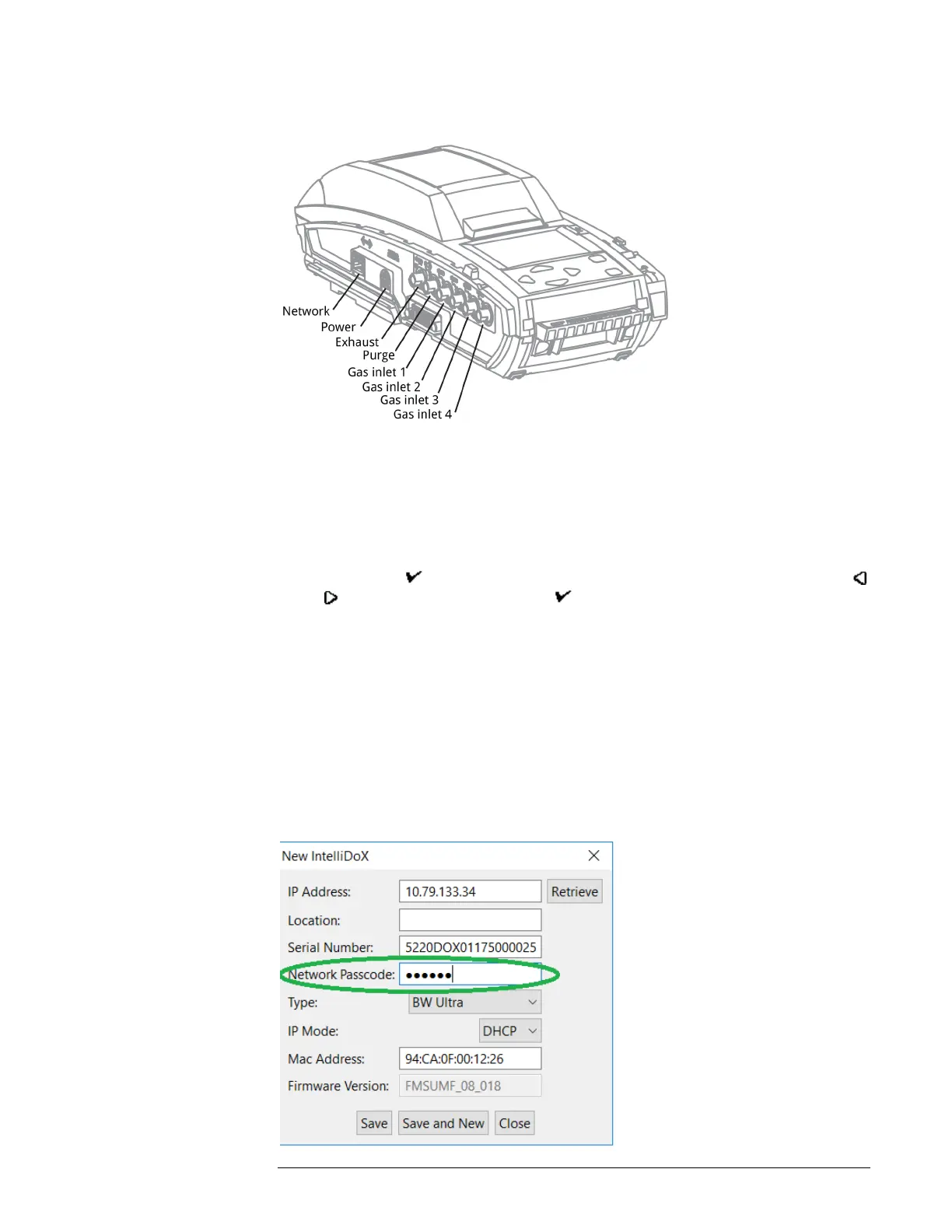

Connecting the Module to a Network
Insert one end of the Ethernet cable into the Ethernet port on the module. Insert the free end of
the Ethernet cable into the network outlet. When the module is connected to the network, the
network symbol is displayed at the top right corner of the LCD.
If the network symbol is not displayed within several seconds, then follow these steps:
1. Verify that the module is activated.
2. Verify that one end of the Ethernet cable is fully inserted into the Ethernet port on the
module, and then verify that the free end is fully inserted into an active network outlet.
3. Press and hold until the Adjust docking station settings menu is displayed. Press
or to scroll to About, and then press to display the About screen. If the IP address
displays only zeroes, then the connection is not active.
If problems persist, contact your network administrator or Help Desk.
Connecting IntelliDoX to Safety Suite Device Configurator
Safety Suite Device Configurator’s versions older than FMSUMF_08_000 will not require a
passcode to access connect to IntelliDoX.
For newer Safety Suite Device Configurator versions, Safety Suite Device Configurator will
require entering the Network Passcode in order to add IntelliDoX. This will be a one time only
process. Safety Suite Device Configurator will need to send the IntelliDoX the network
passcode to verify the connection.
