INTELLIDOX DOCKING MODULE USER MANUAL || CONFIGURE SETTINGS VIA
SAFETY SUITE DEVICE CONFIGURATOR AND SAFETY SUITE SOFTWARE
HONEYWELL PAGE 68 OF 119
Transferring the Configuration File to a Module via Safety Suite Device
Configurator
1. Create the configuration file. See Configure Module and Detector Settings.

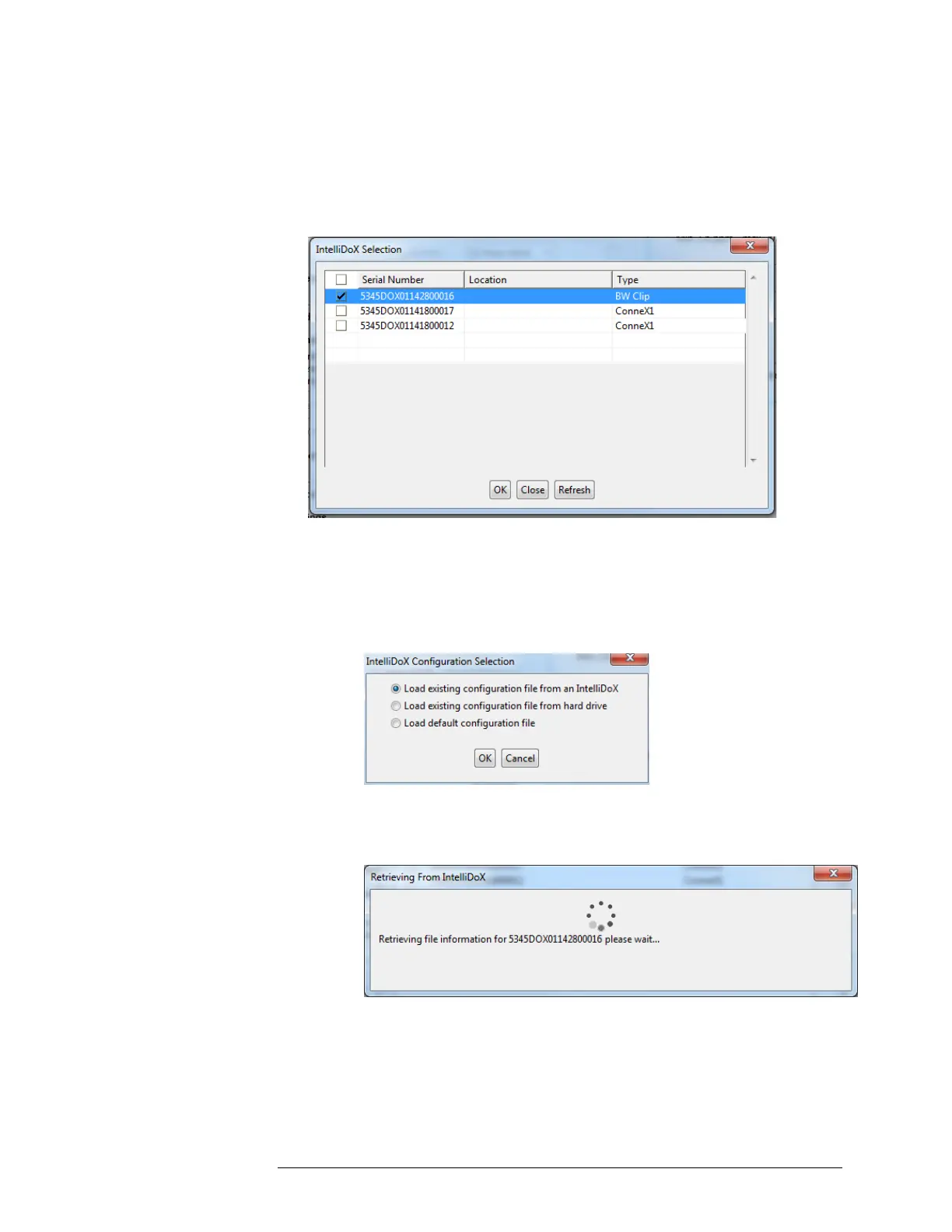

2. Click Save to IntelliDoX. The IntelliDoX Selection dialog box is displayed. Select
one or more modules, and then click OK to transfer the configuration file to the
selected modules.
3. After the file is transferred, the Operation completed message box is displayed.
Click OK to return to the IntelliDoX Device Configuration dialog box.
4. Verify that the configuration settings are updated on the selected modules.
a) Start Safety Suite Device Configurator software, and then log in as an
administrator.
b) Select Configure Devices via IntelliDoX on the Devices menu. The
IntelliDoX Configuration Selection dialog box is displayed.
c) Select Load existing configuration file from an IntelliDoX. The IntelliDoX
Selection dialog box is displayed.
d) Select a module and then click OK. The Retrieving from IntelliDoX
progress screen is displayed.
To Next Page
