Honeywell Sensing and Control 13
SC 2000, SC2001, SC3004
Rev. G, 008-0608-00
4.4 Model SC2001
4.4.1 Differences
Model SC2001 instruments are SC2000 instruments housed in a
portable case.
4.4.2 External Arrangement
The external arrangement of the AC powered SC2001 is given
below

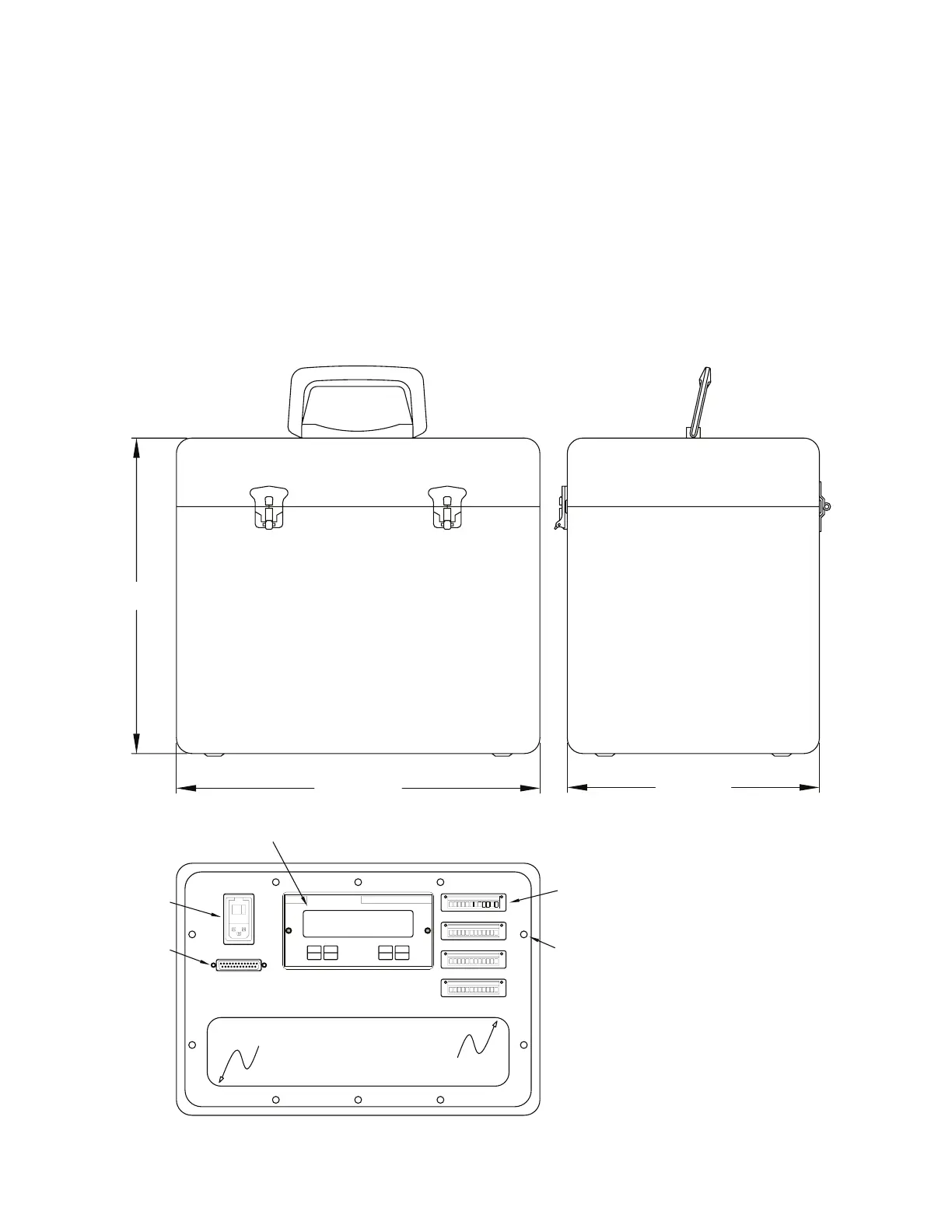

Figure 4-4: External Arrangement of AC powered Model
SC2001
11.5"
[29.2cm]
13.25" [33.7cm]
9.2" [23.3cm]
UP DOWN ENTER EXIT
0123456789ABCDEF
0123456789ABCDEF
VALUE
SC SERIES
CLEARCHAN. TARE
STORAGE COMPARTMENT
11.0"L x 2.5"W x 8.5"D
[28.0cm L x 6.3cm W x 21.6cm D]
12-PIN CHANNEL
CONNECTORS
MODULE
IEC POWER ENTRY
16 CHARACTER, DUAL-LINE
VACUUM FLUORESCENT DISPLAY
25-PIN SYSTEM
CONNECTOR
CABLE SHIELD
CONNECTION SCREW
FRONT PANEL LAYOUT
