Honeywell Sensing and Control 81
SC 2000, SC2001, SC3004
Rev. G, 008-0608-00

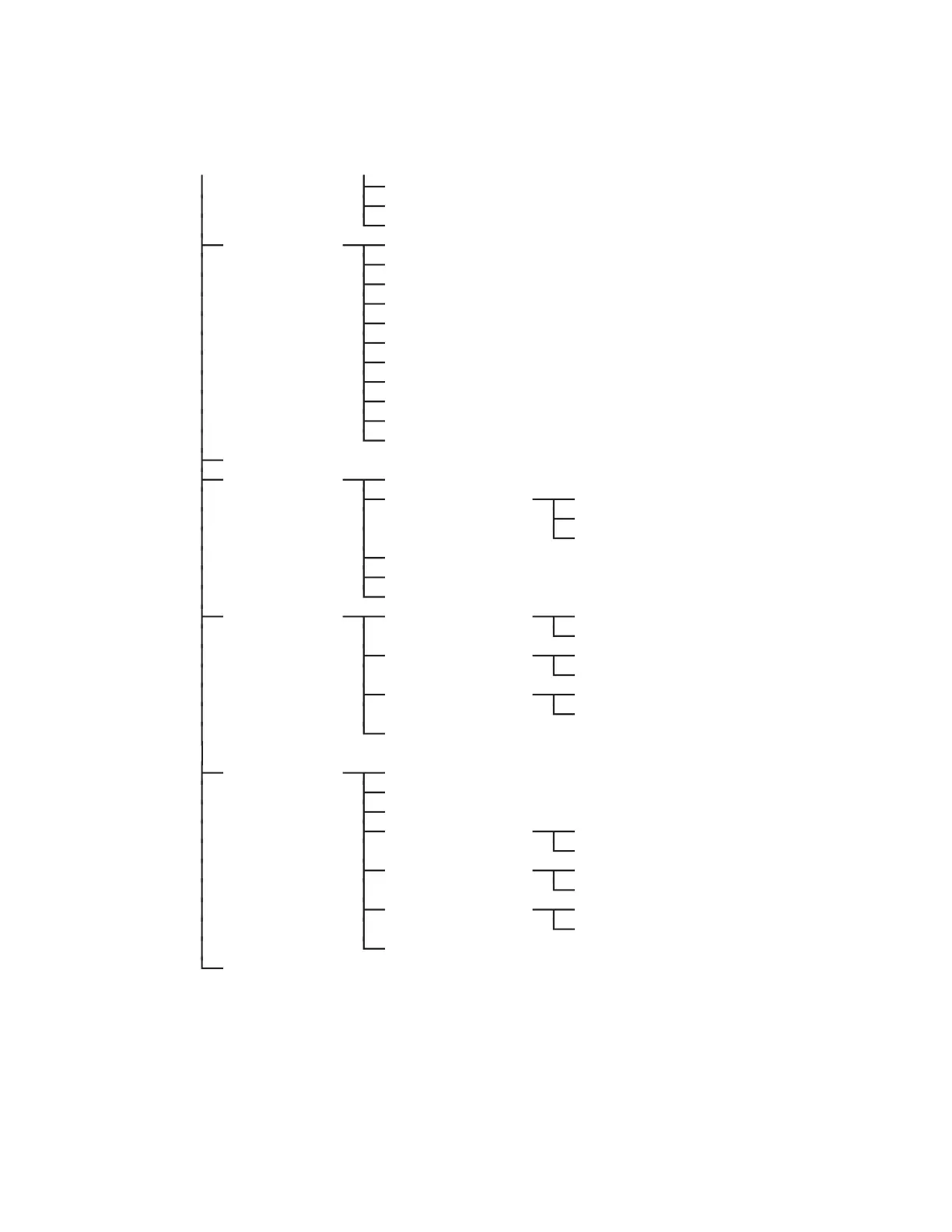

Table 18-7: Strain Gage Input Channel Menu, continued
TYPE=2 POINT CAL
TYPE=3 POINT CAL
TYPE=5 POINT CAL
CALIBRATION DATA EXCITATION
(menu varies with page 32
FULL-SCALE MV/V
calibration type)
FULL-SCALE VALUE
ZERO-SCALE VALUE
SHUNT CAL VALUE
KNOWN LOAD POINT 1/5
KNOWN LOAD POINT 2/5
KNOWN LOAD POINT 3/5
KNOWN LOAD POINT 4/5
KNOWN LOAD POINT 5/5
LEAVE SUB-MENU
CALIBRATE
page 33
DAC SETUP DAC. CHANNEL
page 34
DAC. SOURCE TRACK
PEAK
VALLEY
DAC. ZERO-SCALE
DAC. FULL-SCALE
LEAVE SUB-MENU
SIGNATURE MODULE UPDATE SIG.MOD? NO
page 35
YES
DEFAULT SIG.MOD? NO
YES
UPDATE DAC SETUP? NO
YES
LEAVE SUB-MENU
DIAGNOSTICS DAC FULL SCALE
page 36
DAC ZERO SCALE
VERSION INFO
DISPLAY ADC ON
OFF
LINEARIZATION ON
OFF
DISABLE CHANNEL ON
OFF
LEAVE SUB-MENU
LEAVE MENU
