2 TR80 - Installation and Operation Guide
1.2 Dimensions

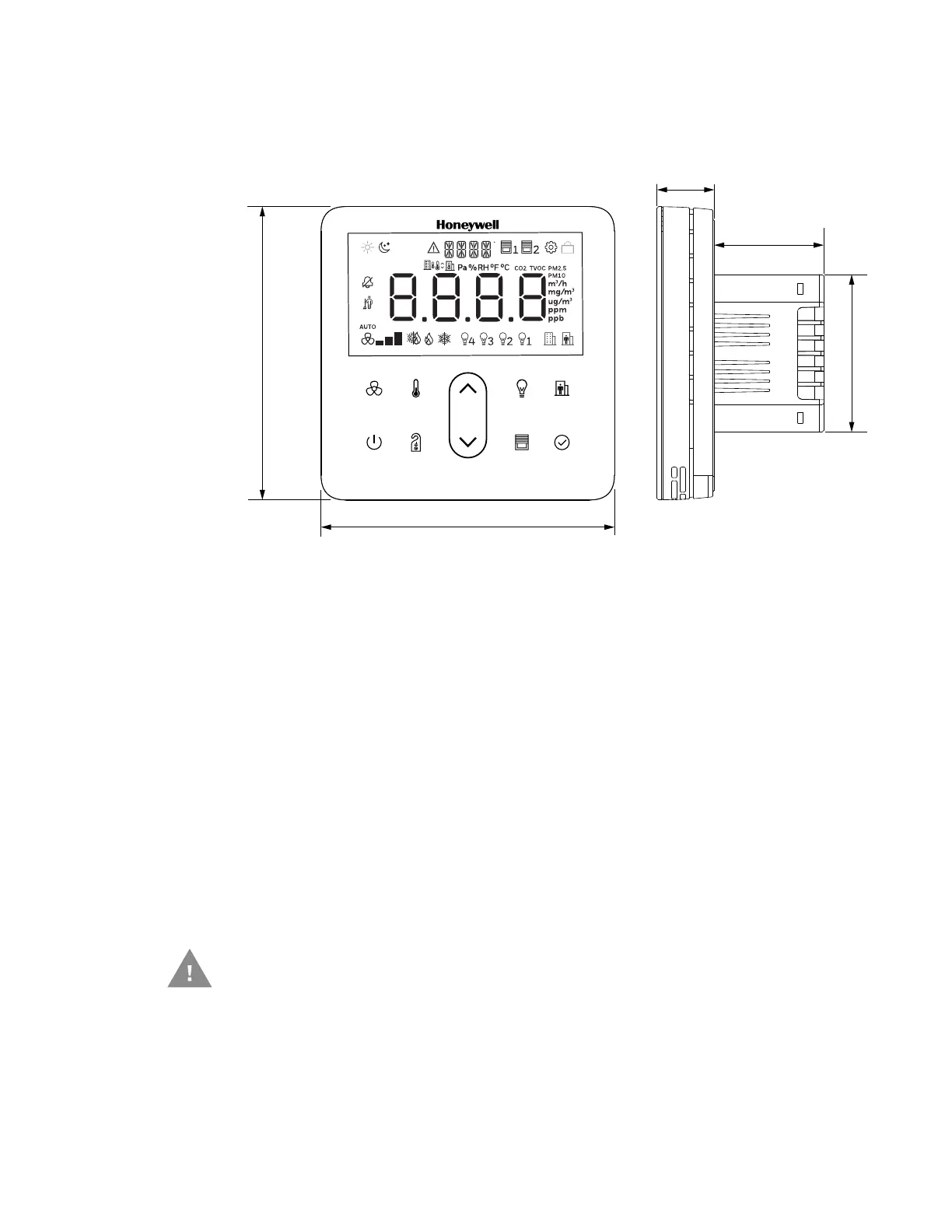

TR 80 wall module dimensions are as shown below:
1.3 Installing theTR80 Wall Module
1.3.1 Before Installation
1. Read these instructions carefully. Failure to follow them could damage the
product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the
product is suitable for your application. The Installer must be a trained,
experienced service technician.
3. After installation is complete, check out product operation as provided in these
instructions.
Note: All wiring must agree with applicable codes, ordinances and regulations or as
specified on installation wiring diagrams.
Caution: Improper use can create dangerous situations.
For life-safety applications, this device can function only as a
secondary or lesser device.
