8 TR80 - Installation and Operation Guide
1.4 TR80 LCD Display

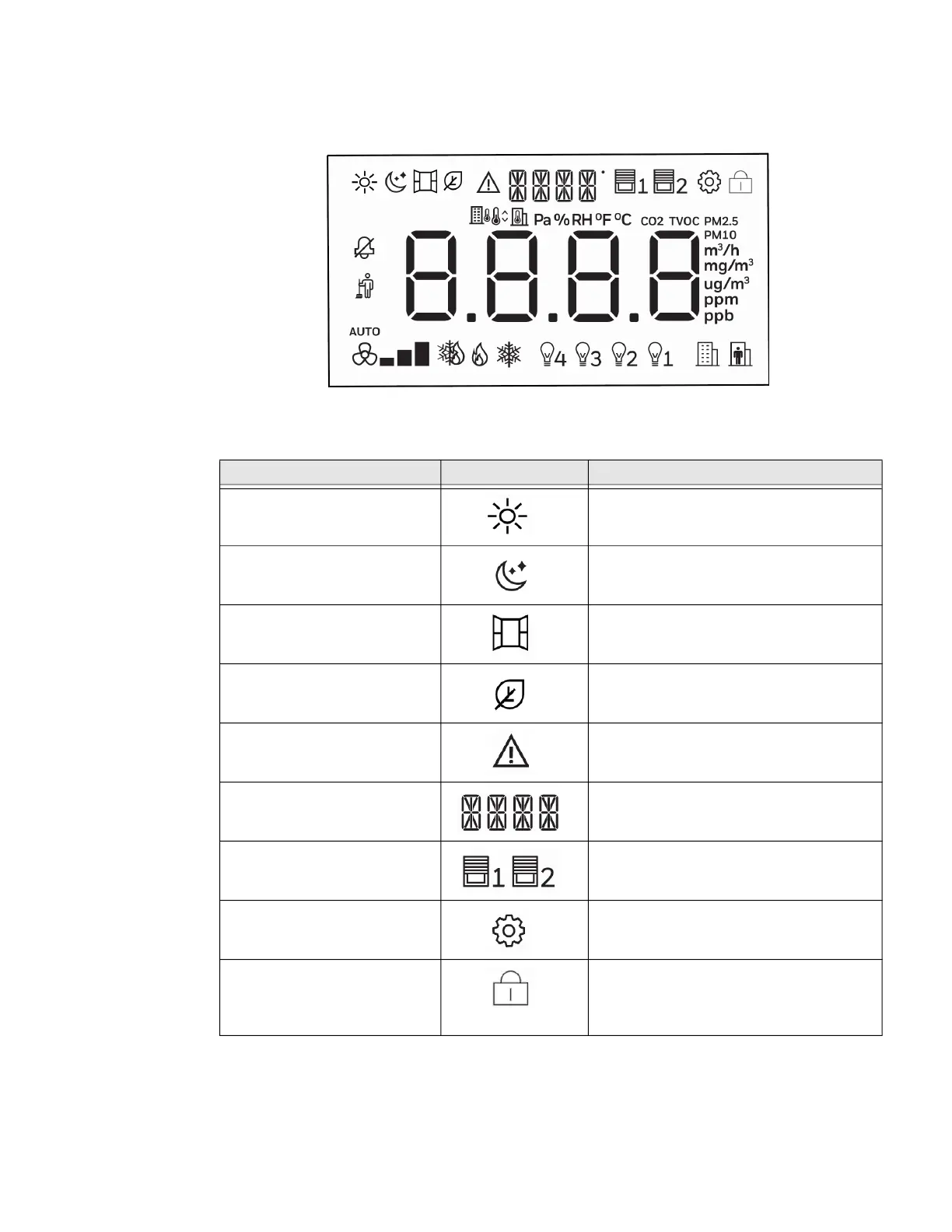

The LCD of TR80 wall module with all possible segments is as shown below:
The following table provide an overview of all available segments of the TR80 wall
module with its defined name.
Name Segment Description
Day
Day symbol
Night
Night symbol
Window open symbol
Indicates that a window is open.A/C may
be automatically turned off..
Eco Mode
Indicates system is in an energy-saving
state.
Alarm Symbol
Indicates that an alarm or fault condition
exists.
Secondary Display
Used to show a short text depending on
the semantic meaning of a display value ,
mode etc.
Blind / shutter/ curtain symbol
Active when setting position or angle for
the particular group.
Configuration
Indicates device is in configuration mode.
Lock
Indicates that device is in locked state,
restricting value changes. A key
combination or PinPin entry will be needed
to unlock it.
