Installation
5/00 UDC3300 Expanded Model: DC330E User Manual 9
Input 2 Jumper
Table 2-2 Input 2 Jumper Selections
Jumper
Location
W1
W2
Power/Input PWA
2nd Input
24162
Jumper
Position
W1 W2 None (remove jumper)
Input Types
Available
Slidewire Thermocouple, RTD, mV,
Radiamatic, Carbon,
Oxygen, 4-20 mA, 0-20
mA, 1-5 V, 0-5 V
Two HLAI replace LLAI
4-20 mA, 0-20 mA,
1-5 V, 0-5 V
High Level Analog Input Connections
250Ω
22
23
24
+
+
–
1
22
23
24
+
+
–
Input 3 Source
Input 2 Source
–
+
–
+
250Ω
Transmitter 3
Transmitter 2
–
+
–
+
Power
Supply
1
–+
1-5V Connections 4-20 mA Connections
1 The 250 load resistors are supplied by Honeywell with the controller when the input is
specified. These items must be installed when you wire the controller before start-up.
ATTENTION: Remove Input 2 jumper when replacing second LLAI with two HLAI.
Refer to Table 2-2.

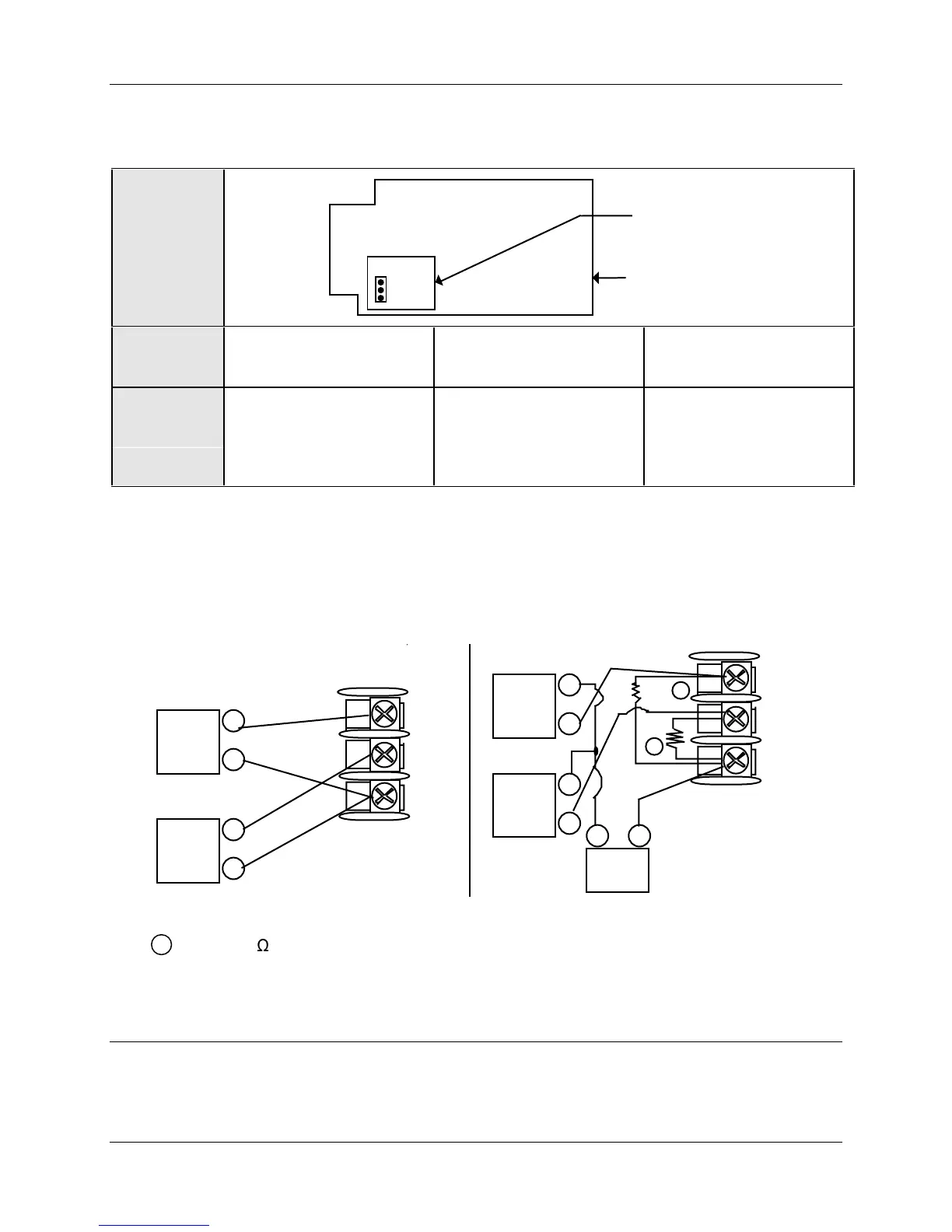

Figure 2-6 Two HLAI Replace 2nd LLAI Connections
