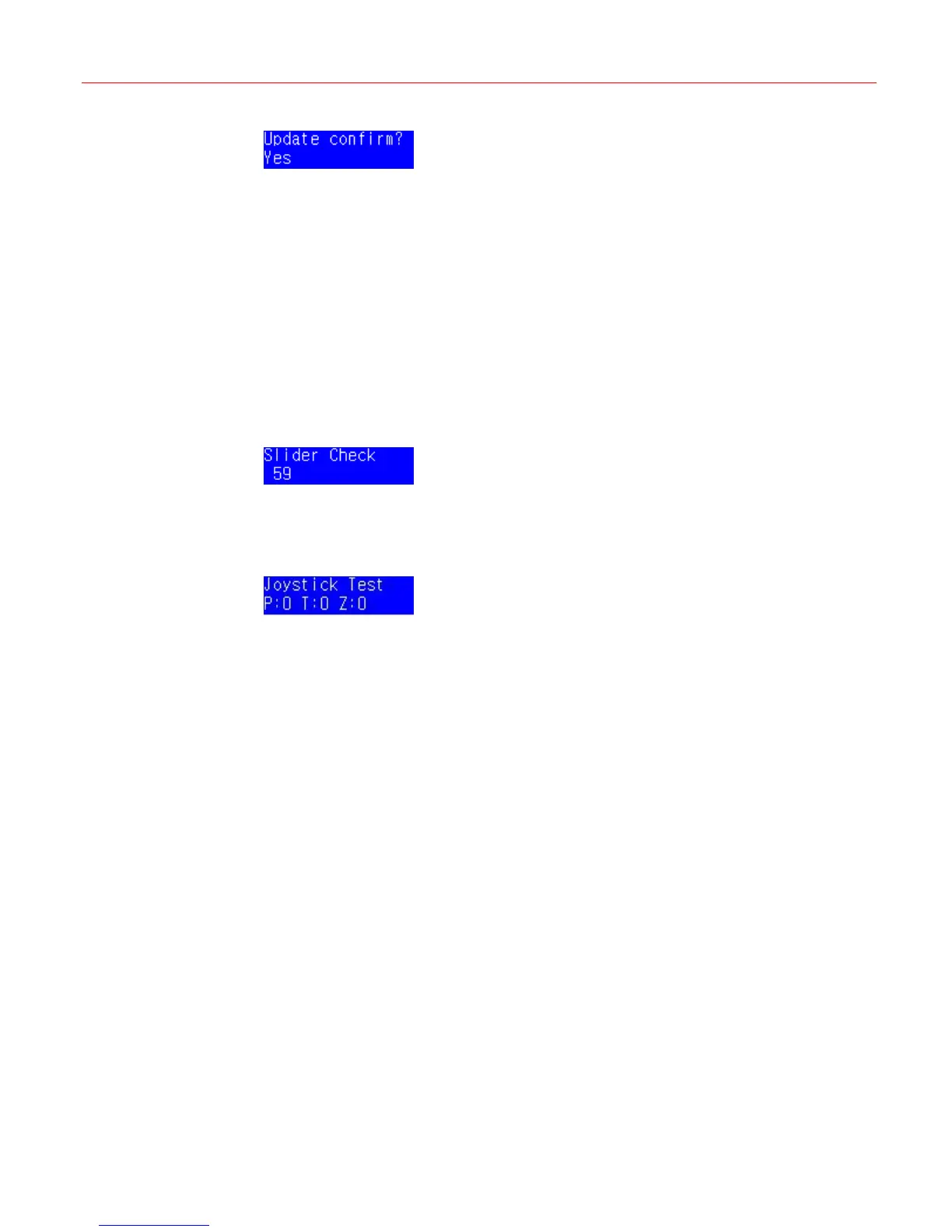

Figure 4-57 Slider Update
Press Slider_Right to confirm the update.
Hardware Test
Hardware Test is used to test the components of the keyboard including the keyboard, the
serial ports, the slider and the joystick. Press Slider_Right in Figure 4-16 to enter Hardware
Test menu.
Key test is used to test the key function. In the key test mode, if you press a certain key, the
key value and its state will be displayed on LCD screen.
Serial port test is used to test the serial port of the keyboard.
Slider test is used to test the slider. In the slider test mode, when you rotate the slider, certain
values will be displayed on the LCD screen.
Figure 4-58 Slider Check
Joystick test is used to test the joystick function. In the joystick test mode, when you move the
joystick, values which present different positions of the joystick will be displayed on the LCD
screen.
Figure 4-59 Joystick Test
About
To view the firmware version and other information, press Slider_Right in Figure 4-17 to enter
the “About” menu.
Press Slider_Left to exist the menu.
