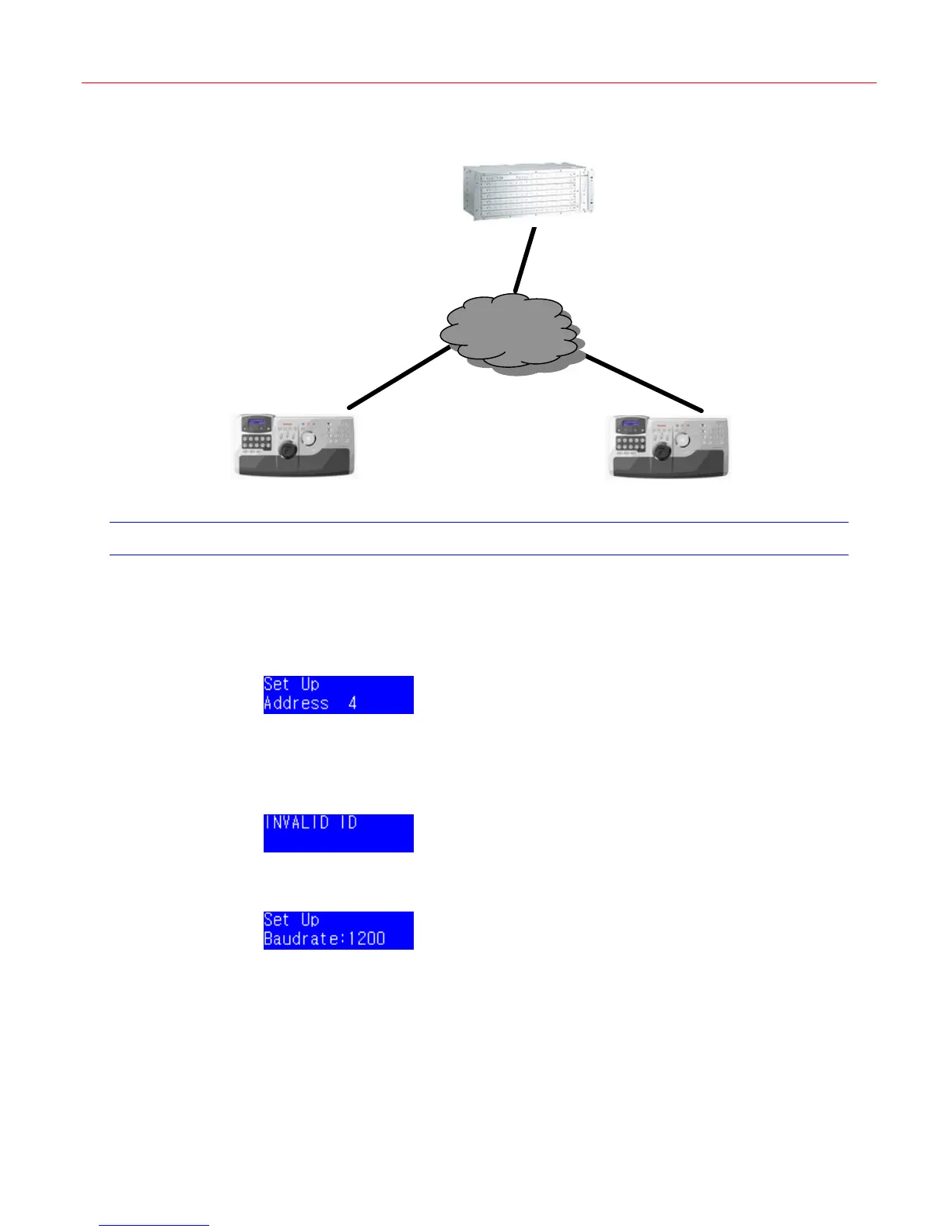

Figure 5-2 Connecting VideoBloX by Ethernet
Keyboard 1
Keyboard 32
TCP \ IP
NETWORK
TCP\IP
Ethernet PortEthernet Port
Network cable Network cable
VideoBloX
* Keyboard is running VideoBlox TCP/IP
keyboard Protocol
* Keyboard address range should be 1 to 32
System Configuration
Refer to “Mode Selection“ on page 10 to set the mode as VideoBloX.
In
Figure 4-7, press Select to enter the VideoBloX Setup menu as shown in the following
figure:
Figure 5-3 VideoBloX – Address
Press number keys followed by Slider_Right or rotate the slider to set the keyboard address.
Note that the address range should be within 1 ~ 32. If the number input is bigger than 32, the
following figure will display:
Figure 5-4 Invalid Address
Enter a valid address and press Slider_Right. The following figure is displayed:
Figure 5-5 Baud Rate Set Up – 1200
There are three options: 1200, 9600 and 19200 bps. Rotate the slider to select the proper
baud rate and then press Slider_Right to complete the configuration.
When
Figure 5-5 shows, press Slider_Right to enter the following menu. There are two
options: Ethernet and Serial Port.
