Honeywell Ultrakey Lite User Manual

Honeywell
29

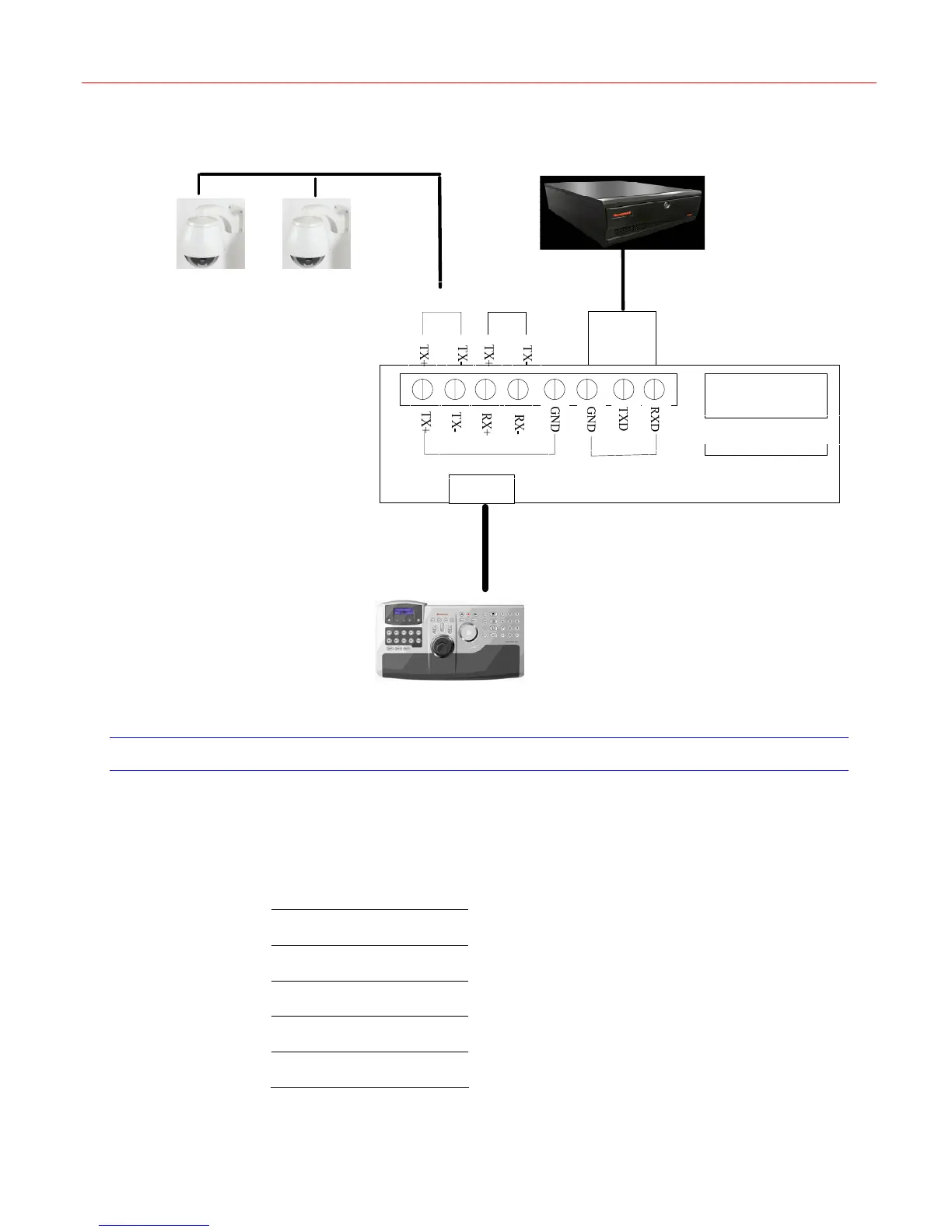

Figure 7-3 Connecting PTZ by Direct Control
Ultrakey Lite
Terminal Box
DVR
DB9 Male
RJ45
RS422( COM1) RS232( COM2)
2- TXD, 3- TXD, 5- GND
RS232( COM2)
Serial Port
RS485(COM1) RS485(COM2)
Network
cable
Fusion DVR
Keyboard Setup
Before using the Ultrakey Lite keyboard Fusion DVR function, it must be set-up to meet the
systems requirements.
Set COM2 according to the table below:
Type
RS232
Baud Rate
9600
Parity
None
Data
8
Stop
1
