System Configuration
12

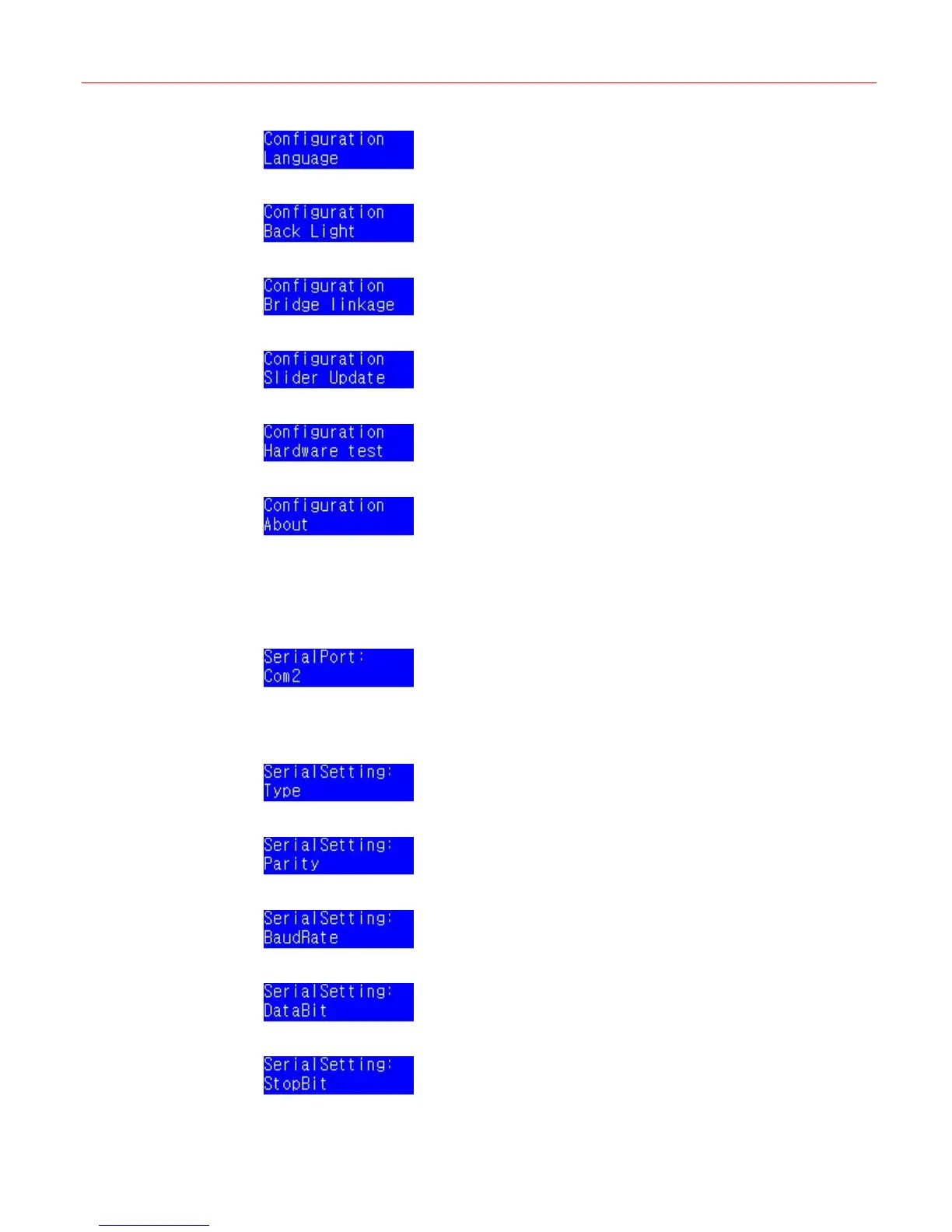

Figure 4-12 System Configuration – Language
Figure 4-13 System Configuration – Back Light
Figure 4-14 System Configuration – Bridge Linkage
Figure 4-15 System Configuration – Slider Update
Figure 4-16 System Configuration – Hardware Test
Figure 4-17 System Configuration – About
Serial Port
In Figure 4-10, press Slider_Right and the following figure is displayed.
Figure 4-18 Serial Port
Rotate the slider to select a serial port and then press Slider_Right. The data bit, stop bit, type,
parity, baud rate settings of the certain serial port will display as follows:
Figure 4-19 Serial Port – Type
Figure 4-20 Serial Port – Parity
Figure 4-21 Serial Port – Baud Rate
Figure 4-22 Serial Port – Data Bit
Figure 4-23 Serial Port – Stop Bit
The above menu items can be rotating the slider to display.
