Web System
42
DVR
• Type – select one DVR type to be used.
• User – set the DVR as master or slave.
• Channel allocation – click Display to view channels of all the DVRs and Cameras, as
shown in
Figure 8-5.
Bridge Mode (cascaded connection)
• Mode – set the keyboard as Master or slave in a cascade connection.
• If the keyboard is used as slave, it must be assigned with the master’s IP address in
Master IP Address.
Dome
• Name – enter the name of the dome.
• Used address – enter the address of the dome.
• Protocol Type – select the control protocol of the dome.
Click Apply to save the configuration; Cancel to give up the configuration; Default to restore
all default values.

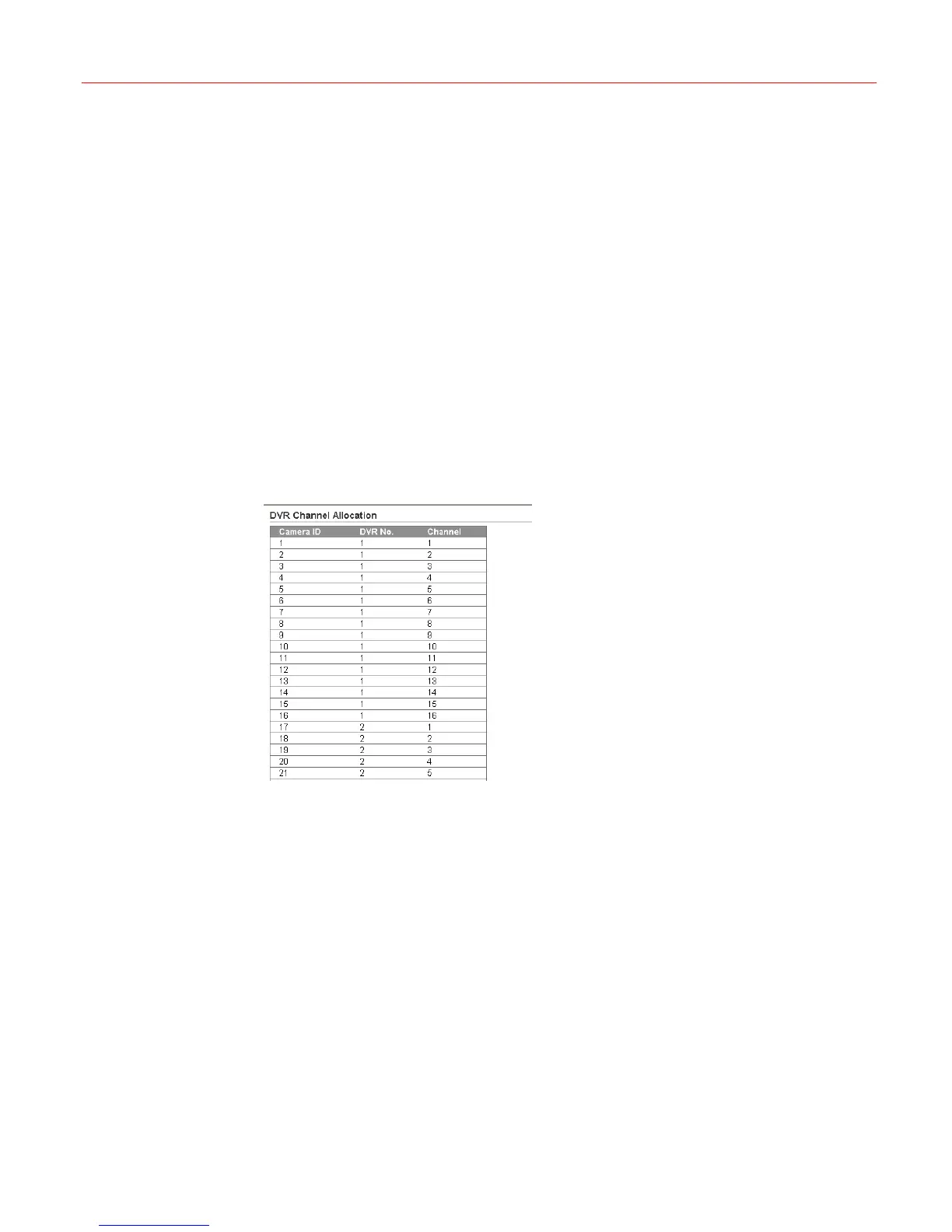

Figure 8-5 DVR Channel Allocation
Maxpro Configuration
Click Maxpro Configuration in the left pane and the following figure is displayed:
