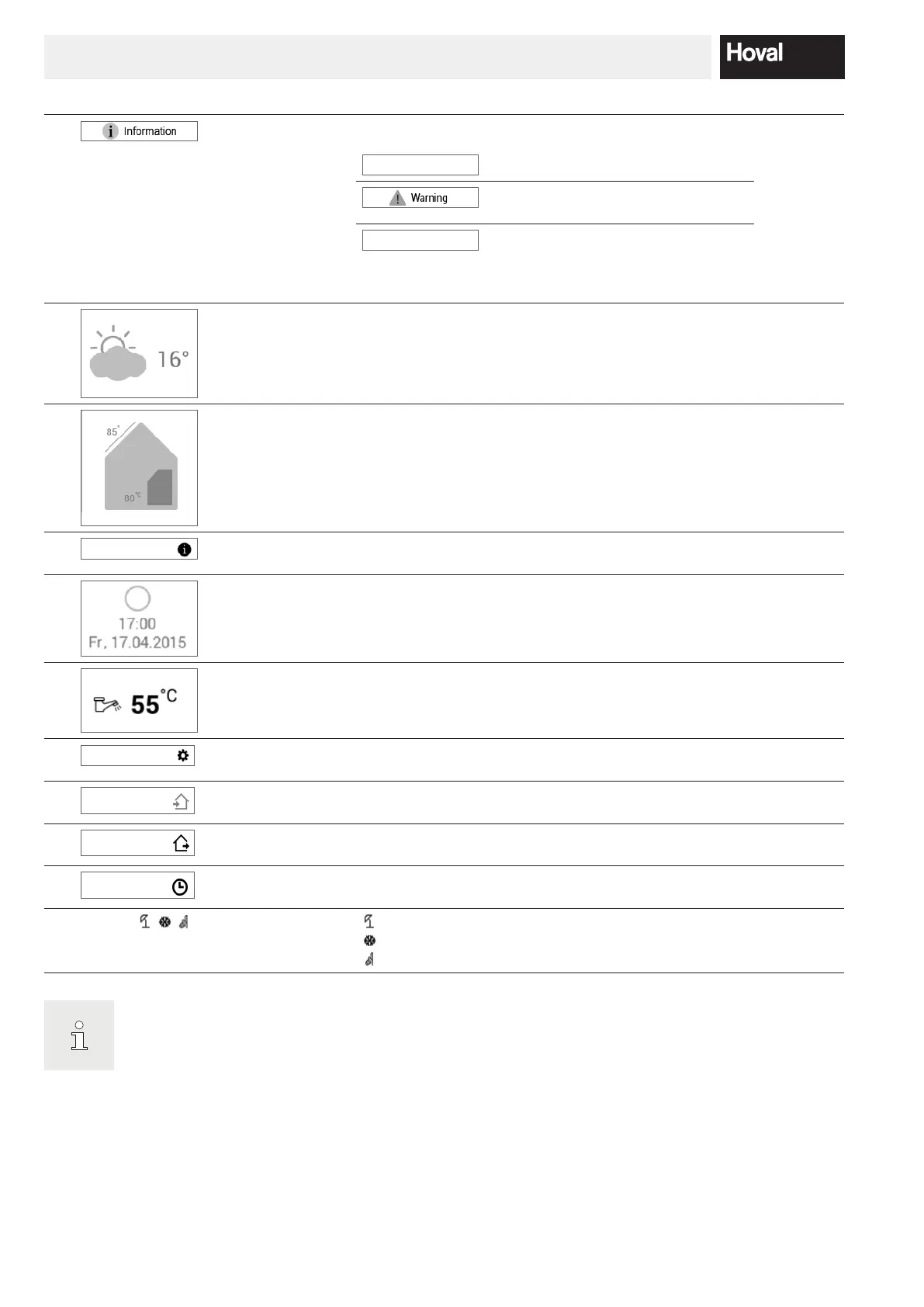

6 Operating status Currently active operating status 7.1 page
76
No display – correct operation
Alarm message
display
Selection and display of alarm mes-
sages
Information for the technician: Display
authorisation level. If no level is dis-
played, the control is in level 0 - your
operating level.
7
Outside
temperature
Display of the current outside temperature (only dis-
played if there is a outdoor temperature sensor). In addi-
tion, the phase of the moon is displayed at night.
In connection with the TopTronic
®
E online, the current
weather is displayed.
8
Information active
heat generator
Displays the current temperature in the active heat ge-
nerator. If a solar plant is installed, the collector tempe-
rature is also displayed. If the heat generator/solar plant
is currently active, this is indicated by an orange colour.
9
Information Detailed information about the system 5.7.7 page
27
10
Phase of the
moon, time and
date
Display of the current time and date. In connection with
the TopTronic
®
E online, the current phase of the moon
is displayed.
11
Hot water Shows the current domestic hot water temperature if ne-
cessary.
5.11 page
51
12
Main menu This operating element accesses the main menu. 5.12.1
page 58
13
Day program Heating takes place immediately, the «Party» program
is activated.
5.10 page
40
14
Present Used for quickly switching over if you will be absent for
a few hours.
5.10.3
page 42
15
Week program Back to the week program 5.7.4 page
23
16
Special symbols
= summer mode
= frost protection when pump on
= screed drying
The display of the start screen is a standard view. The operating elements can be adapted by the user.
Please check the start screen settings in 5.13.3 page 72 if the display if dierent.
