HEATING SYSTEM CONTROL
174 213 563 / 03

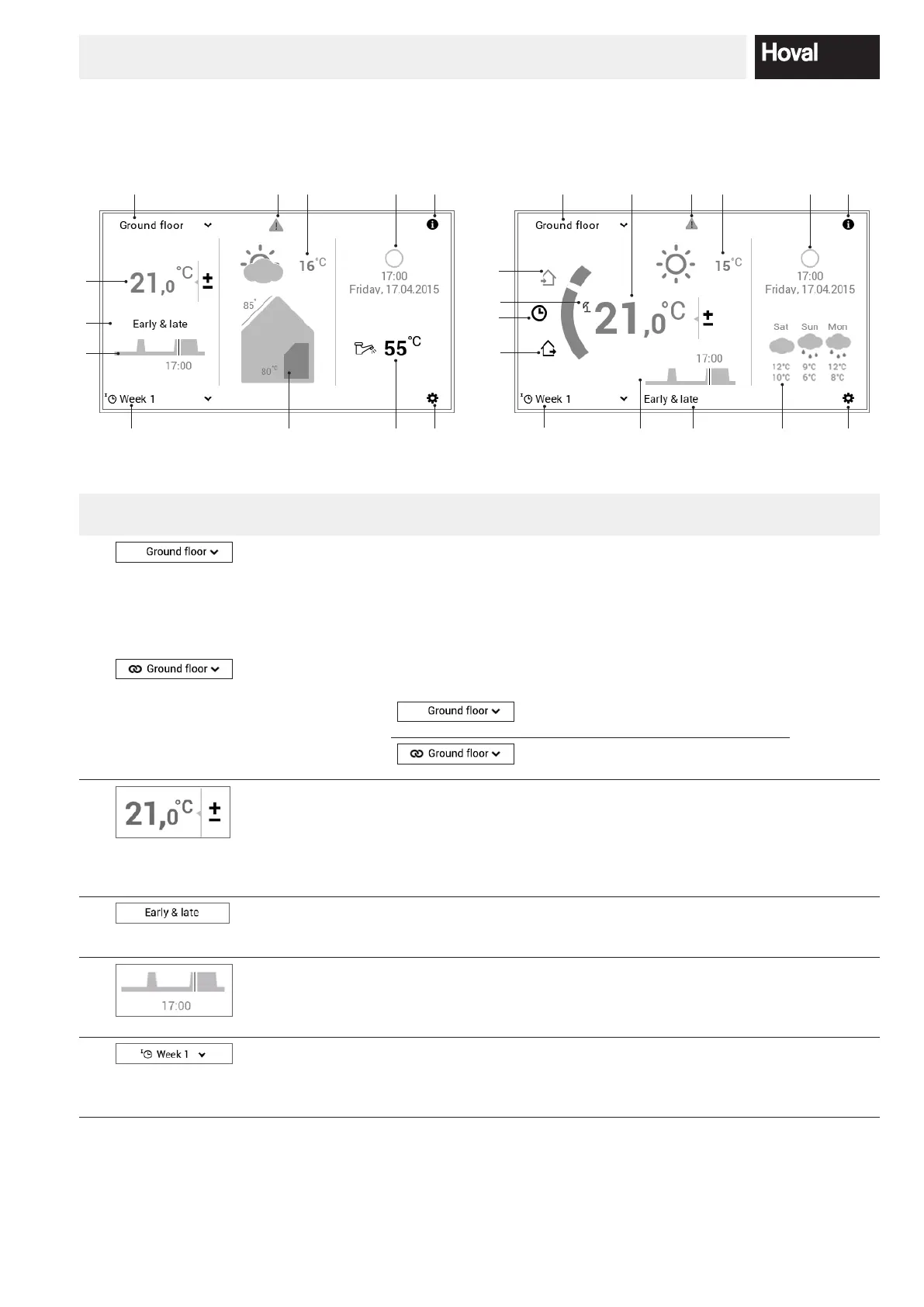

5.6.1 Elements of the start screen heat generator and living area
Heat generator Living area
1
2
16
15
14
7
8 12
11
6
9
10
3
4
5
2
1
6
10 9
5 4 3 7 12
13
7
Position / symbol Designation Function Chapter /
page
1
Heating circuit If a house is divided into individual heating areas, the
heating circuit refers to each individually adjustable por-
tion. Each heating circuit can have individual settings
assigned to it, such as basic program, day and week pro-
gram as well as room temperature. If no name is shown,
then there is only one heating circuit.
5.7.3 page
23
Operation
heating circuits
Display of the joint or individual operation of all heating
and domestic hot water circuits.
Individual operation of every individu-
al heating circuit
Joint operation of all heating circuits
(temperature and programs identical)
2
Room temperature Displaying the current room temperature – in room con-
trol modules and systems with room air sensor – in the
selected heating circuit. Adaptation of the temperature
by increasing or reducing the preset temperature (5.7.1
page 21). Display of the required room temperature in
systems without room air sensor.
5.7.1 page
21
3
Active
day program
Currently active day program. Only displayed if the ba-
sic programs Week 1 and Week 2 (5.8 page 28) are
selected.
5.7.5 page
24
4
Switching cycle The diagram shows the course of the day (room tempe-
rature vertical, time horizontal) of the active basic pro-
gram or the assigned day program. The vertical line re-
presents the current status.
5.10.5
page 45
5
Basic program Assignment of the basic program for the particular situa-
tion (e.g. week programs, Constant, Holiday). The basic
program is used as the operating mode of the heating
circuit.
5.7.4 page
23
