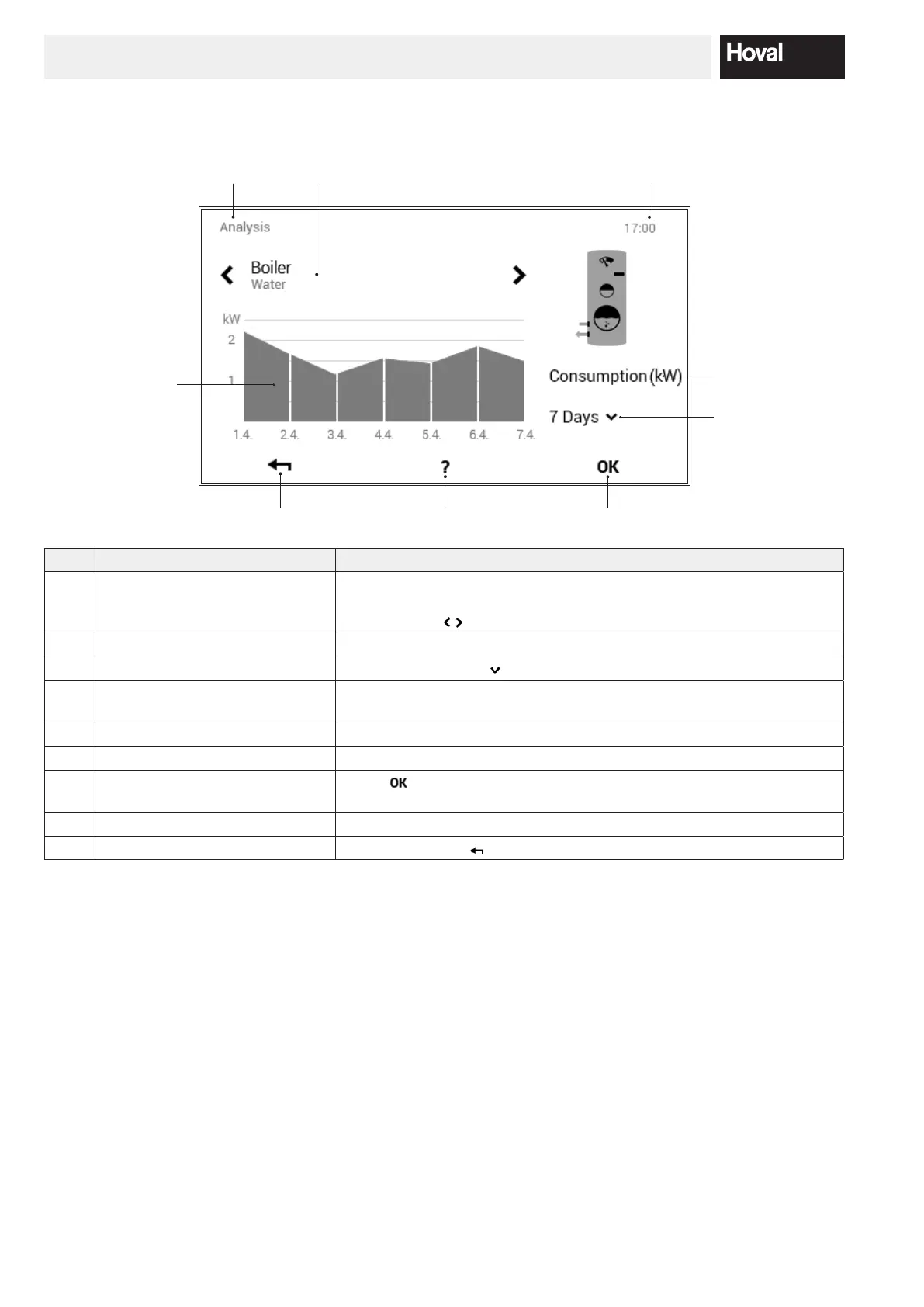

5.12.9 Analysis
(Main menu / Analysis)
5
6
1
4
9
8
7
3
2
No. Designation Function
1 Heat generator /
heating circuits / hot water
Selection of the area to be analysed. It is possible to select between the
heat generator, the heating circuit and the hot water area using the hori-
zontal arrows (
).
2 Measuring parameter Display of the recorded measuring parameter
3 Selection duration Use the down arrow (
) to select the required duration.
4 Analysis / graphic Display of the measuring parameter of the selected heat generator, hea-
ting circuit or hot water in the desired duration
5 Position in the menu Name of the currently selected menu item
6 Time of day Displays the current time.
7 OK Save (
) the changes in the selected heating circuit and return to the
previous screen
8 Help No function is available at present
9 Back Used as a button (
) for returning to the main menu.
