If this pulse is a glitch and you need to know whether it violates the logic
threshold, the peak height error might make you believe that it does not.

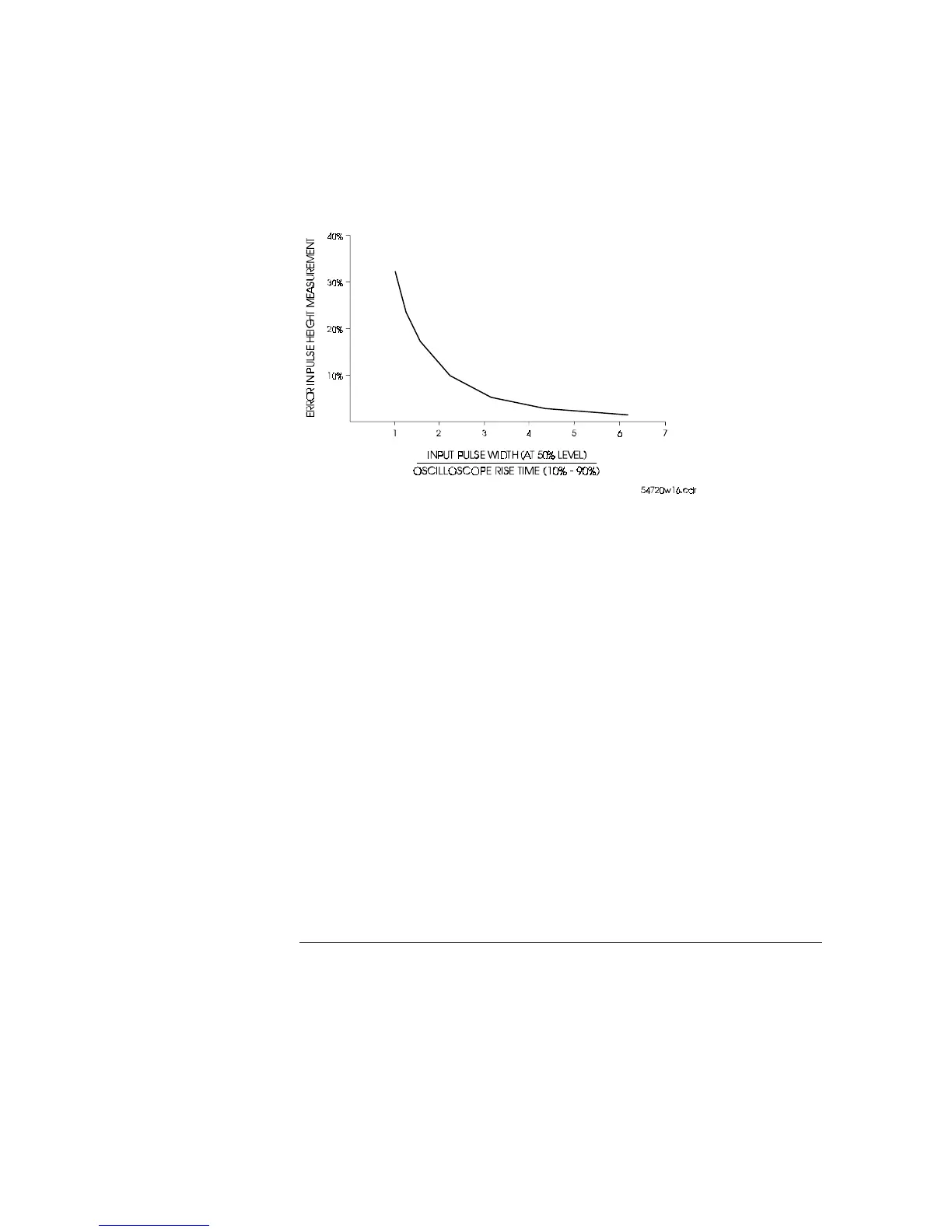

Figure 13-18 shows pulse height error as a function of oscilloscope rise time
and input pulse width.
Errors in Pulse Height Measurement
Figure 13–18
Measurements
Time-interval measurements
13–42
