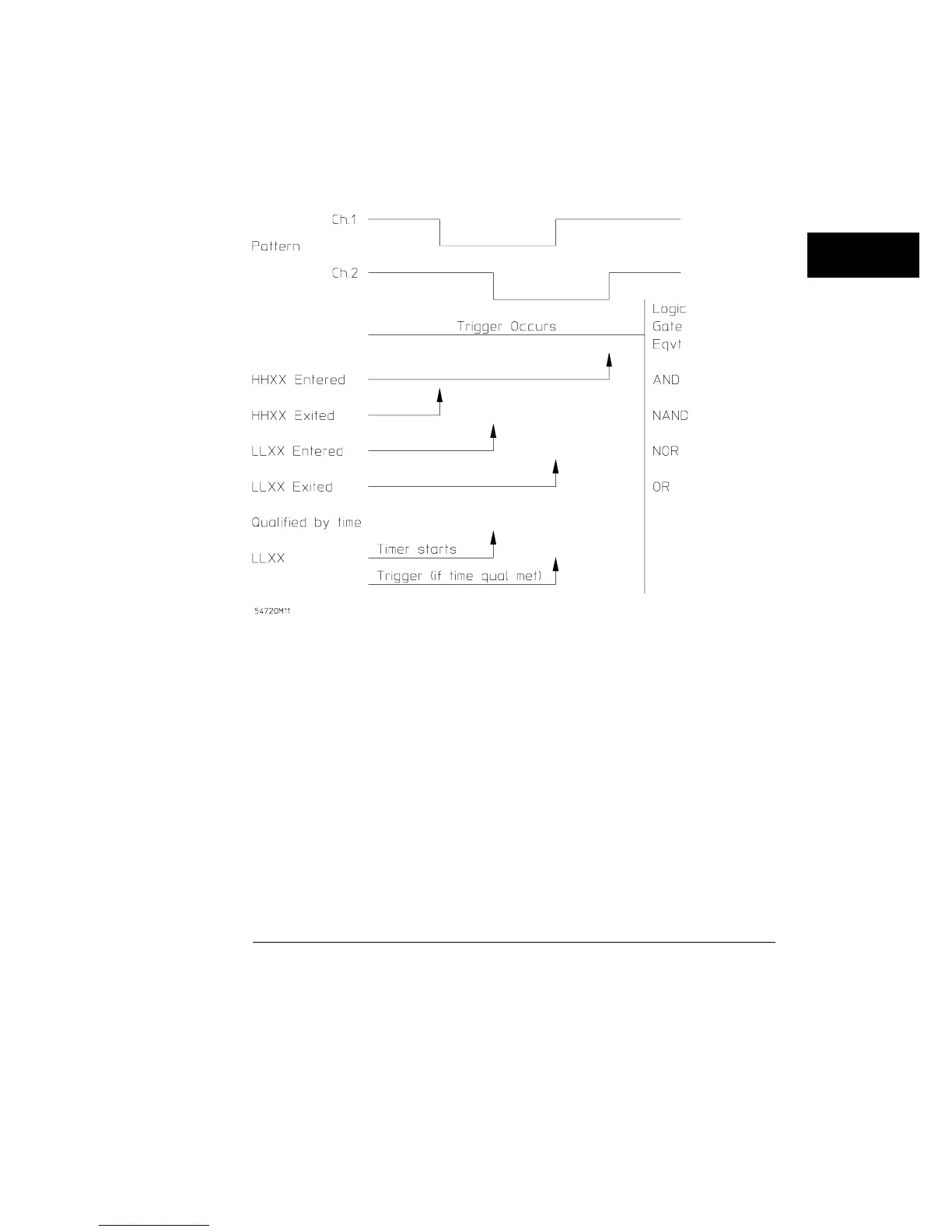

Figure 18-4 shows a two-channel timing diagram, and where the trigger
occurs for a few patterns. Also shown is the logic gate equivalent of the each
pattern.
Examples of when a trigger occurs for pattern trigger
Figure 18-4
