HP 8360 - Description of Triggering in the HP 8360 Series Synthesizers; L-42. HP 8360 Simplified Trigger Model; The TRIG Trigger Configuration

EXT >-
BUS +
IMMED O-
&
b
Initiate
TRIG
Event Detection
IMMED
Sequence
I_) Instrument 1
BUS
Actions
EXT
I

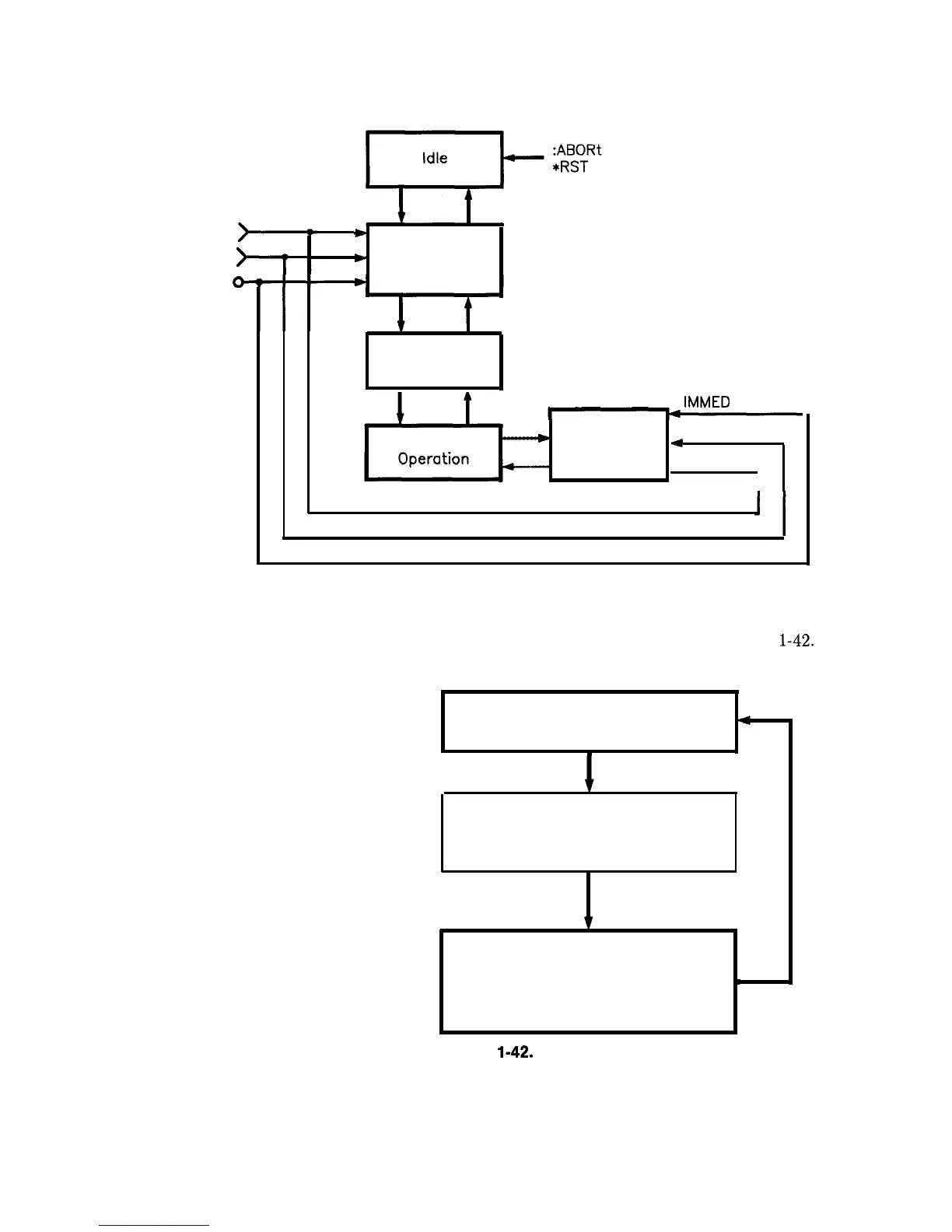

Figure 1-41. The TRIG Trigger Configuration
Description of
The HP 8360 series synthesizers follow the SCPI model of triggering.
Triggering in the HP
It is a layered model with the structure shown in Figure l-42.
8360 Series
Synthesizers
Idle State
4
Sweep Initiated
Waiting for the
Trigger Signal
to be True
Sweep Started
v
Sweep State
Perform a Sweep
(Frequency, Power,
I
Stepped, List, or Analog)
Figure l-42. HP 8360 Simplified Trigger Model
The process of sweeping involves all 3 of these states. The IDLE
state is where the sweep begins. The IDLE state is left when
Getting Started Programming
l-l11
