Installation Procedure
1. Refer to Figure 3-5. Remove handle trim strips.
2. Remove the four screws on each side that attach the handles to
the instrument; remove the handles.
3. Using the screws provided, attach the rack mount flanges to the
synthesizer.
4. Remove the bottom and back feet and the tilt stands before rack
mounting the instrument.
.
..p
/A@
.
..a
.
..6.
3
II

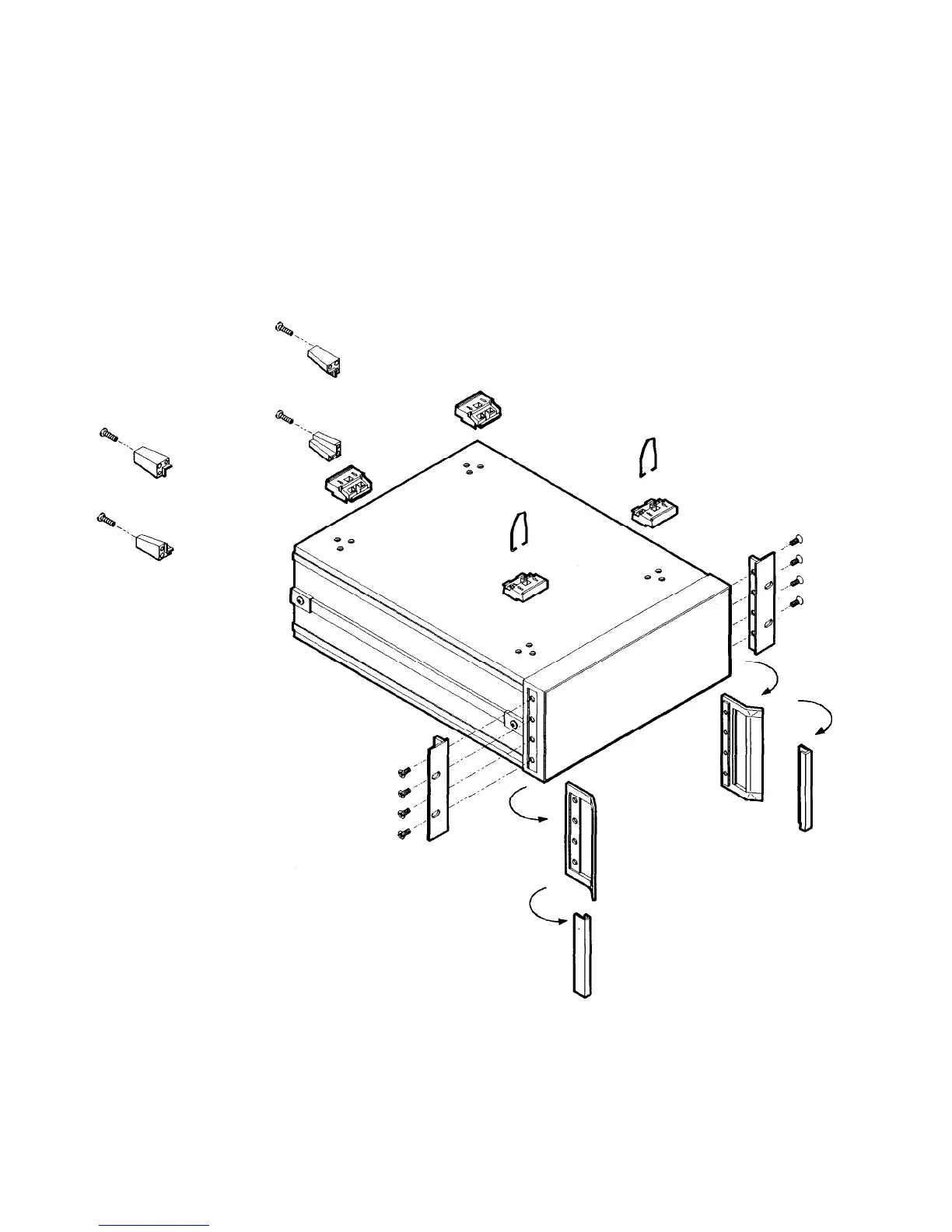

Figure 3-5. Rack Mount Flanges for Synthesizers with Handles Removed
