CONNECTORS
HP-IB connector allows the synthesizer to be connected to any other
instrument or device on the interface bus. All HP-IB instruments
can be connected with HP-IB cables and adapters. These cables are
shown in the accompanying illustration. The adapters are principally
extension devices for instruments that have recessed or crowded
HP-IB connectors.
HP-B
SHl
AH1
TE
L4
LEO
SRl
RLl
PPO
DC1
DTl
COl-3,
28
El
0
ii
. .
ii
t:
::
. .
0

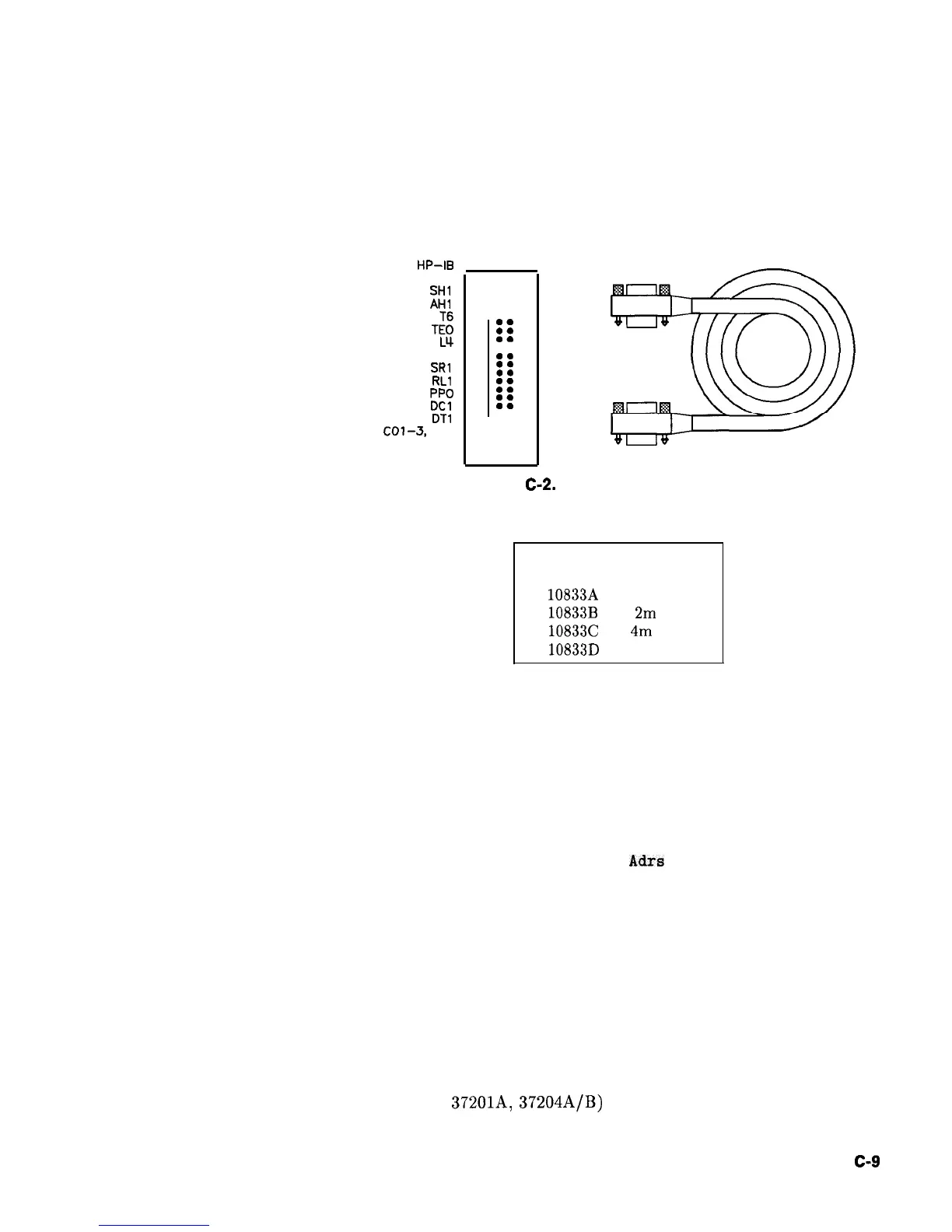

Figure
C-2.
HP-IB Connector and Cable
HP-IB Interface Cables Available
HP-IB Cable
Lengths
Part Numbers
HP
10833A
lm (3.3 ft)
HP
10833B
2m (6.6 ft)
HP
10833C
4m (13.2 ft)
HP
10833D
0.5 m (1.6 ft)
As many as 14 HP-IB instruments can be connected to the
synthesizer (15 total instruments in the system). The cables can be
interconnected in a “star” pattern (one central instrument, with
the HP-IB cables emanating from that instrument like spokes on
a wheel), or in a linear pattern (like boxcars on a train), or any
combination pattern. There are certain restrictions:
n Each instrument must have a unique HP-IB address, ranging from
0 to 30 (decimal). Refer to
8360
adrs
for information on setting
the synthesizer’s HP-IB address.
n In a two-instrument system that uses just one HP-IB cable, the
cable length must not exceed 4 meters (13 ft).
n When more than two instruments are connected on the bus, the
cable length to each instrument must not exceed 2 meters (6.5 ft)
per unit.
n The total cable length between all units must not exceed 20 meters
(65 ft).
Hewlett-Packard manufactures HP-IB extender instruments
(HP models
372OlA,
37204A/B)
that overcome the range limitations
imposed by the cabling rules. These extenders allow twin-pair cable
HP 8360
User’s Handbook
Operating and Programming Reference
C-9
