HP 8360 - M-4. ALC Block Diagram; M-5. Pulse Modulation System

Pulse Modulation
Figure

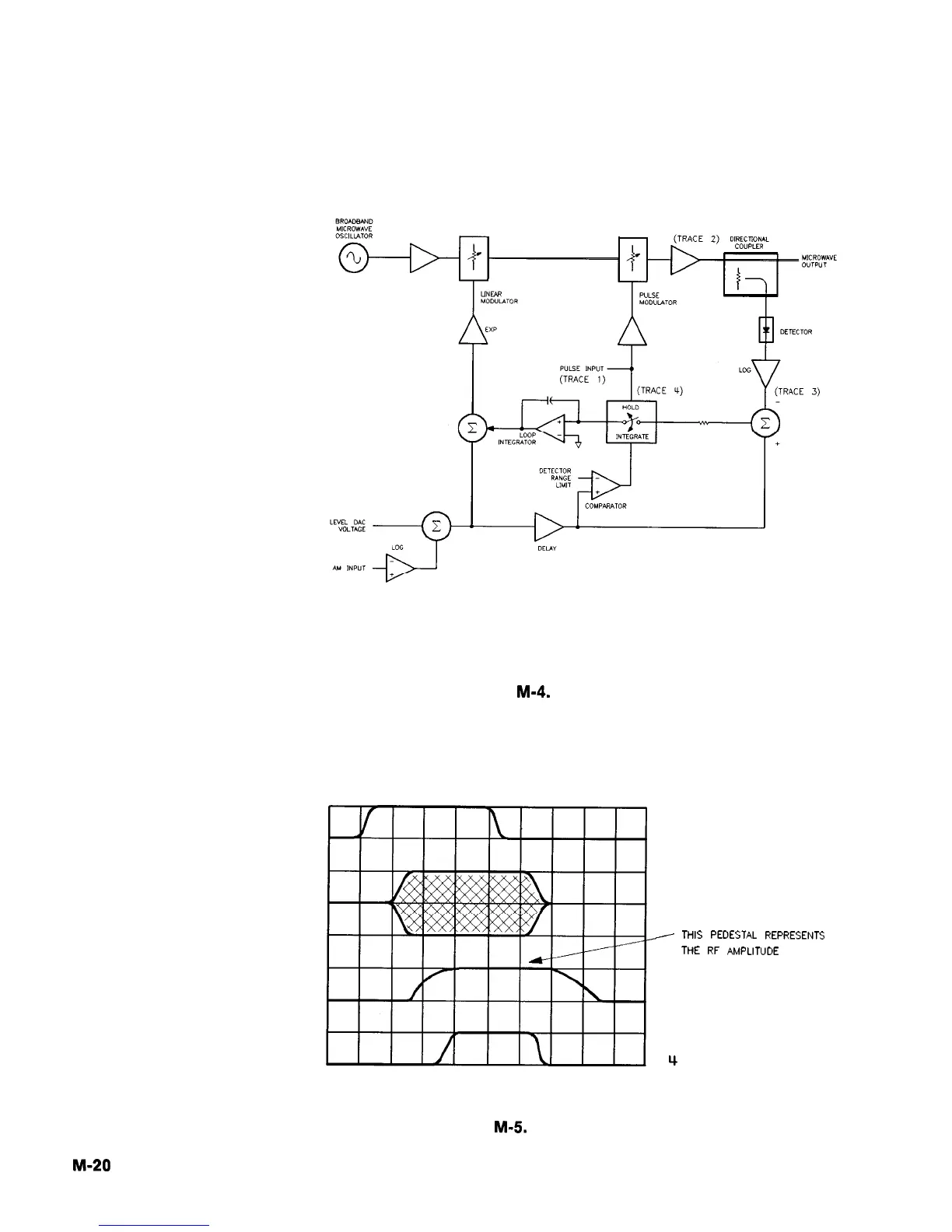

M-4. ALC Block Diagram
(B) PULSE WAVEFORMS
0
1
PULSE INPUT
0
2 RF
I THIS PEDESTAL REPRESENTS
THE RF AMPLITUDE
0
3 LOG AMP OUTPUT
0
4 S/H CONTROL
Figure M-5. Pulse Modulation System
