Power-Line Related (< 300 Hz offset from carrier)
10 MHz to < 7 GHz -55
7 GHz to < 13.5 GHz
-49
13.5 GHz to 20 GHz
-45
> 20 GHz to < 26.5 GHz
-43
26.5 GHz to < 38 GHz”
-39
38 GHz to 50 GHz
-37
Single-Sideband
Phase Noise
Offset from Carrier
(dBc/Hz)
Band(s) 100 Hz 1kHz 10kHz
100 kHz
10 MHz to < 7 GHz
-70
-78
-86
-107
7 GHz to < 13.5 GHz
-64
-72
-80
-101
13.5 GHz to 20 GHz
-60
-68
-76
-97
> 20 GHz to < 26.5 GHz
-58
-66
-74
-95
26.5 GHz to < 38 GHz”
-54
-62
-70
-91
38 GHz to 50 GHz
-52
-60
-68
-89
-60
IOOHz

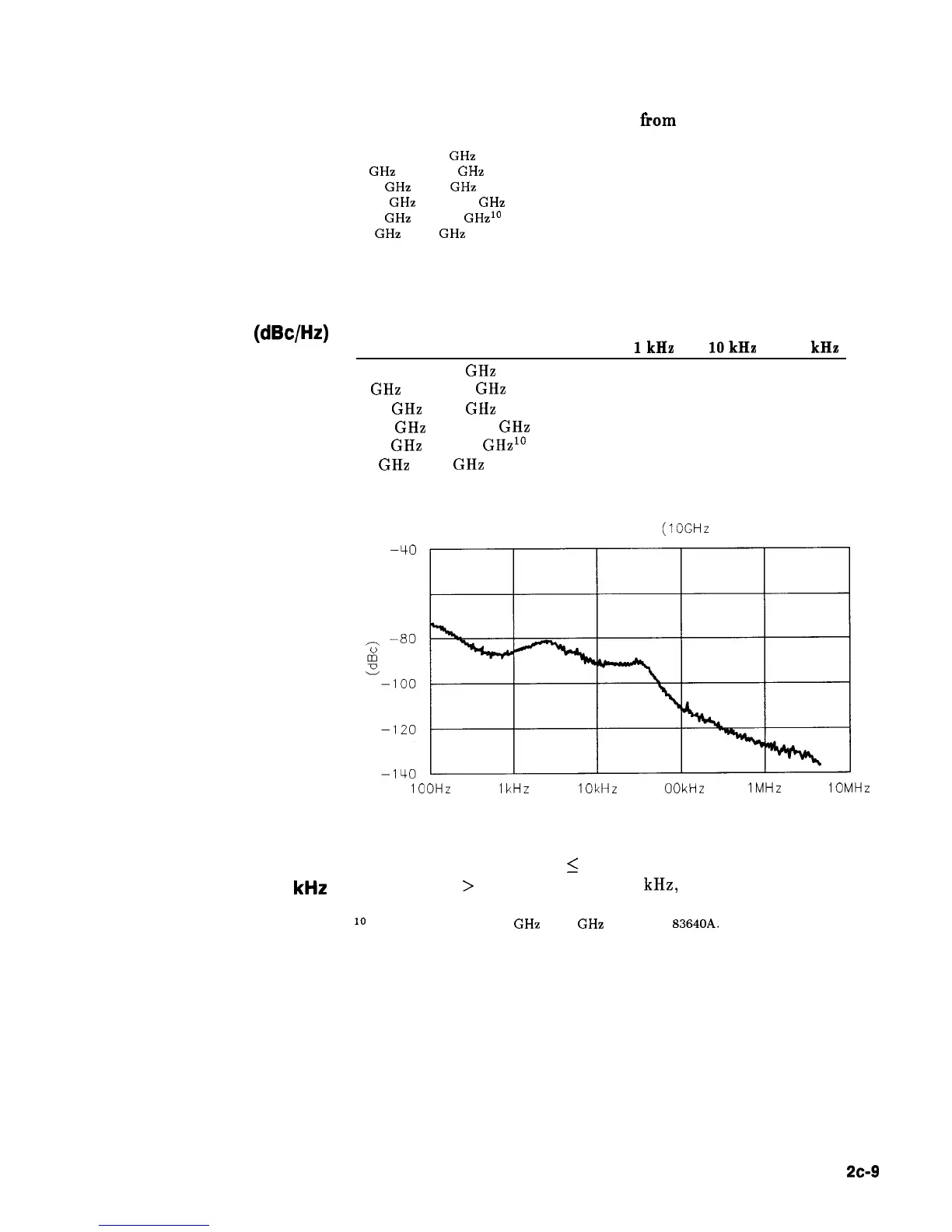

Typical Phase Noise (10GHz Carrier)
IkHz IOkHz 1 OOkHz
IMHz IOMHz
Offset From Carrier
Residual FM
CW Mode or Sweep Widths 5 n x 10 MHz: n x 60 Hz, typical
(RMS, 50 Hz to 15 kHz
Sweep Widths > n x 10 MHz: n x 15 kHz, typical
bandwidth)
lo Frequency range is 26.5 GHz to 40 GHz on the HP 83640A.
