Memory Modules
Hardware and Software Guide 8–2
Expansion Memory Module Slot
To add or upgrade a memory module in the expansion
memory
module slot:
1. Shut down the notebook. If you are not sure whether the
notebook is off or in hibernation, turn the notebook on by
pressing the power button to the left or right. Then shut down
the notebook through the operating system.
2. Disconnect all external devices connected to the notebook.
3. Disconnect the notebook from external power.
4. Turn the notebook upside down.
5. Remove any battery packs from the notebook.

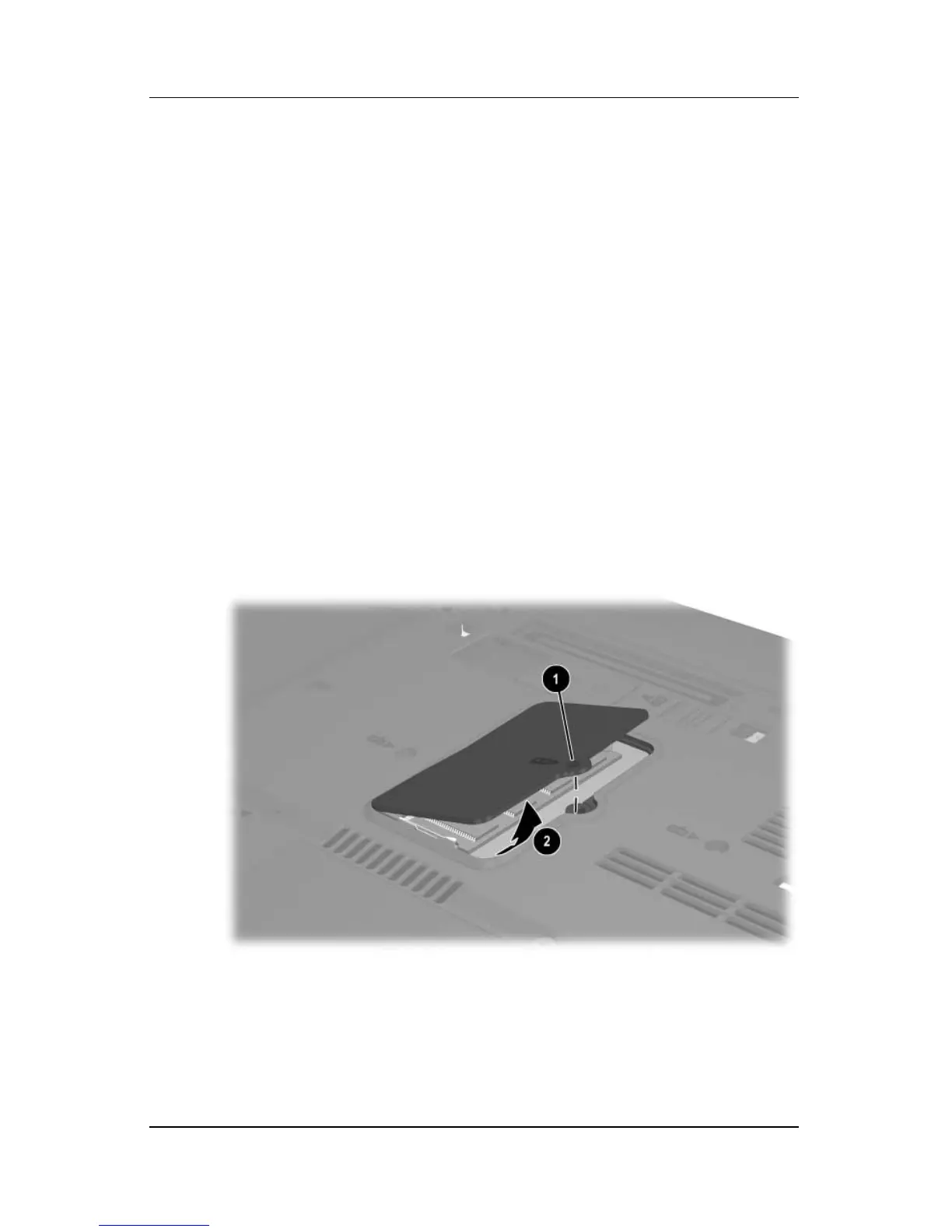

6. Loosen the memory module cover screw 1.
7. Lift the memory module cover 2 away from the notebook.
