Memory Modules
Hardware and Software Guide 8–6
Primary Memory Module Slot
To add a memory module to the primary memory module slot:
1. Shut down the notebook. If you are not sure whether the
notebook is off or in hibernation, turn the notebook on by
pressing the power button to the left or right. Then shut down
the notebook through the operating system.
2. Disconnect all external devices connected to the notebook.
3. Disconnect the notebook from external power.
4. Turn the notebook upside down.
5. Remove any battery packs from the notebook.

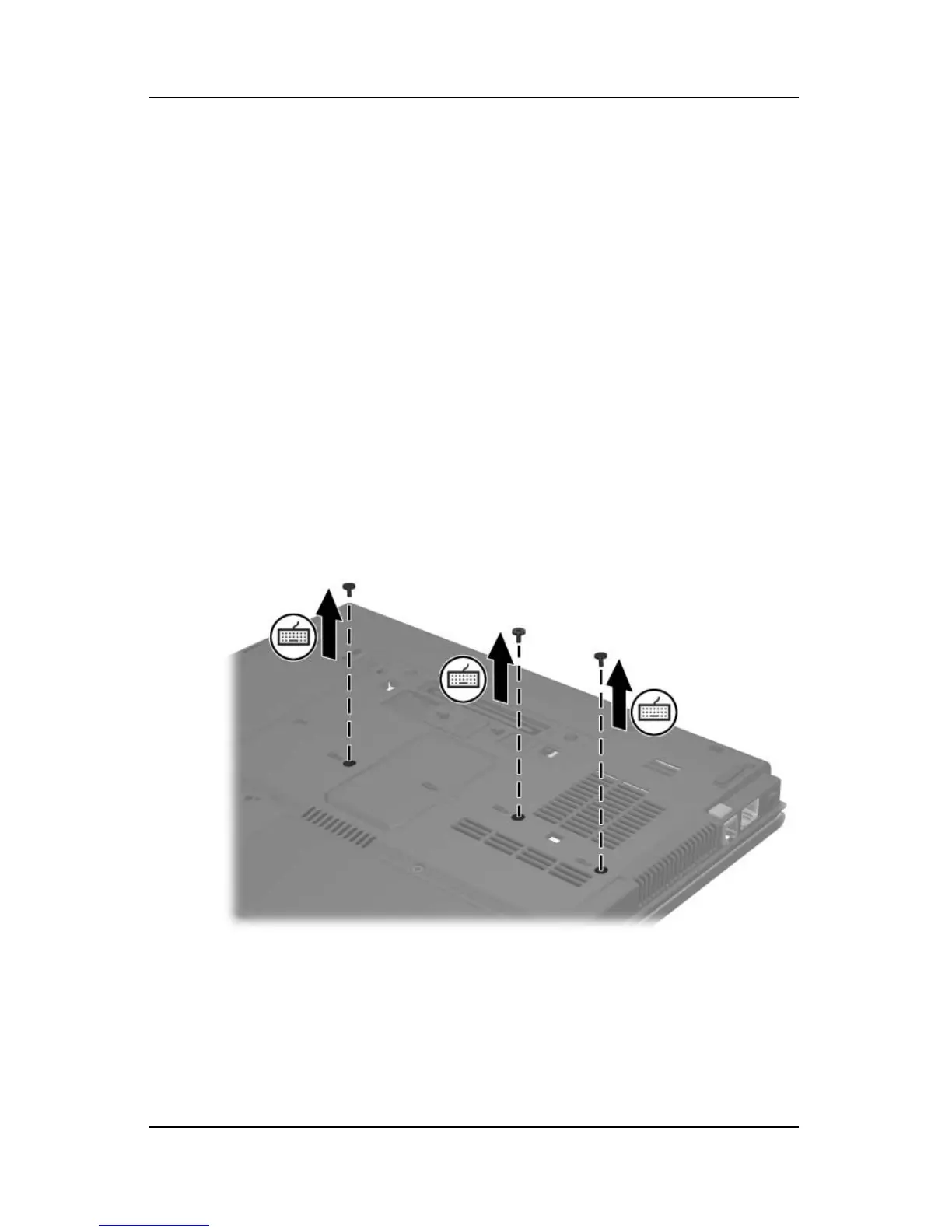

6. Remove the 3 keyboard access screws from the bottom of the
notebook. (A keyboard icon is located next to each keyboard
access screw.)
7. Turn the notebook display-side up and open it.
