HP Compaq nc6220

Memory Modules
Hardware and Software Guide 8–9

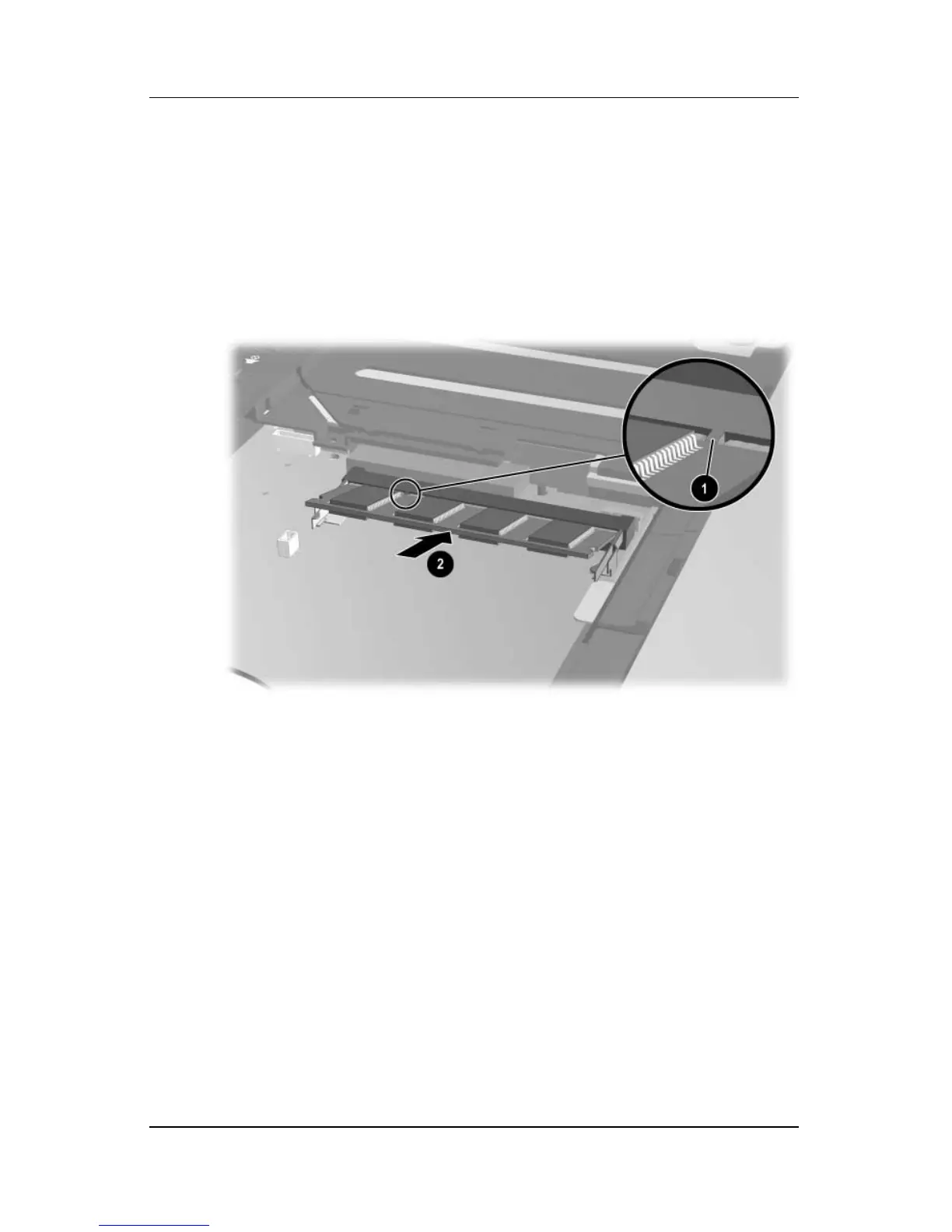

11. Insert the new memory module into the memory module slot:
a. Align the keyed (notched) edge of the module 1 with the
tabbed area in the expansion slot.
b. Press the module into the slot from a 45-degree angle
until it is seated 2.
