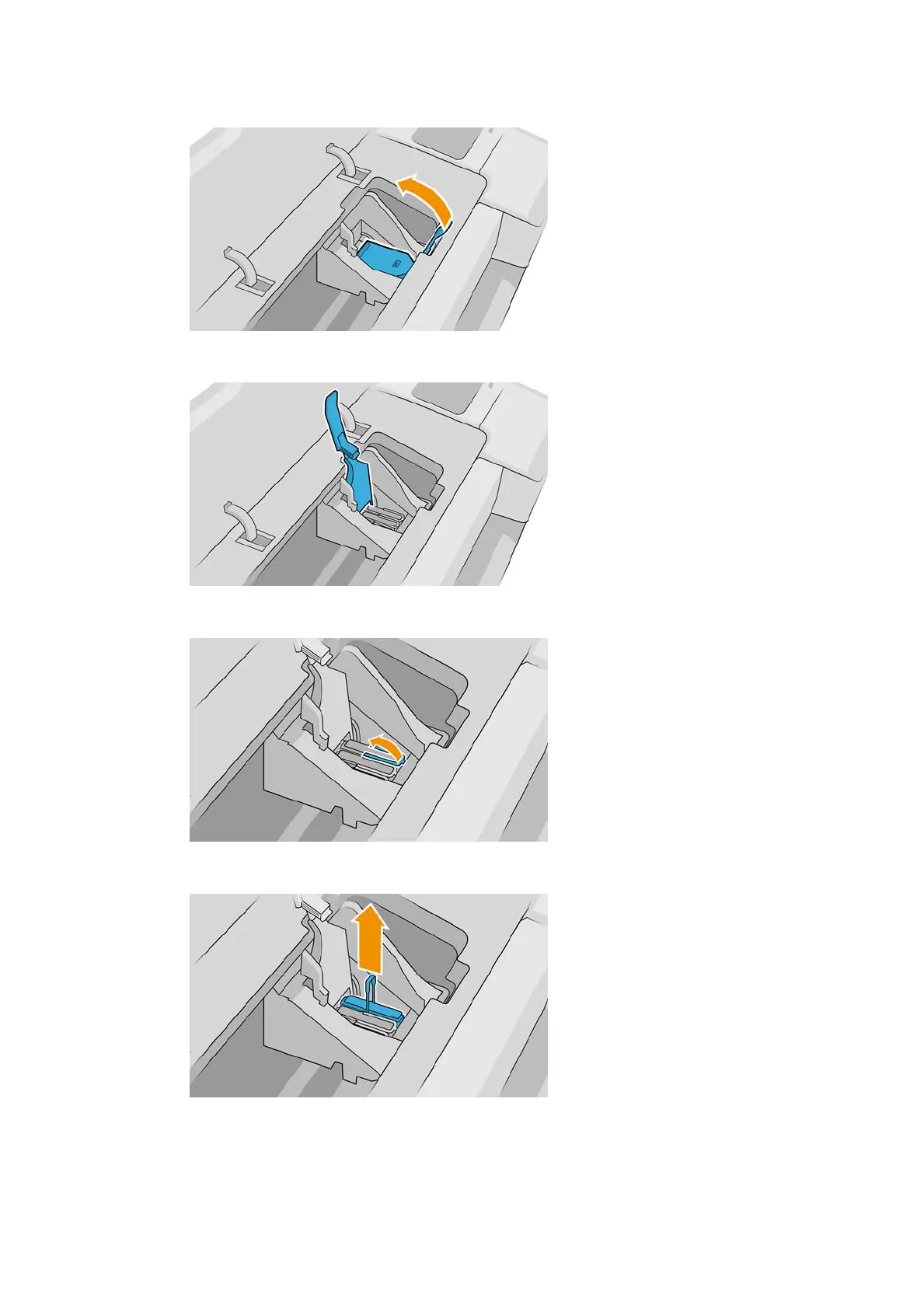

6.
Push the handle b
ack to r
aise the lid.
7.
This gives y
ou acc
ess t
o the printheads.
8.
T
o remove a printhe
ad, lift up the blue handl
e.
9.
Using the blue handl
e
, use ste
ady for
c
e to disengag
e the printhead.
