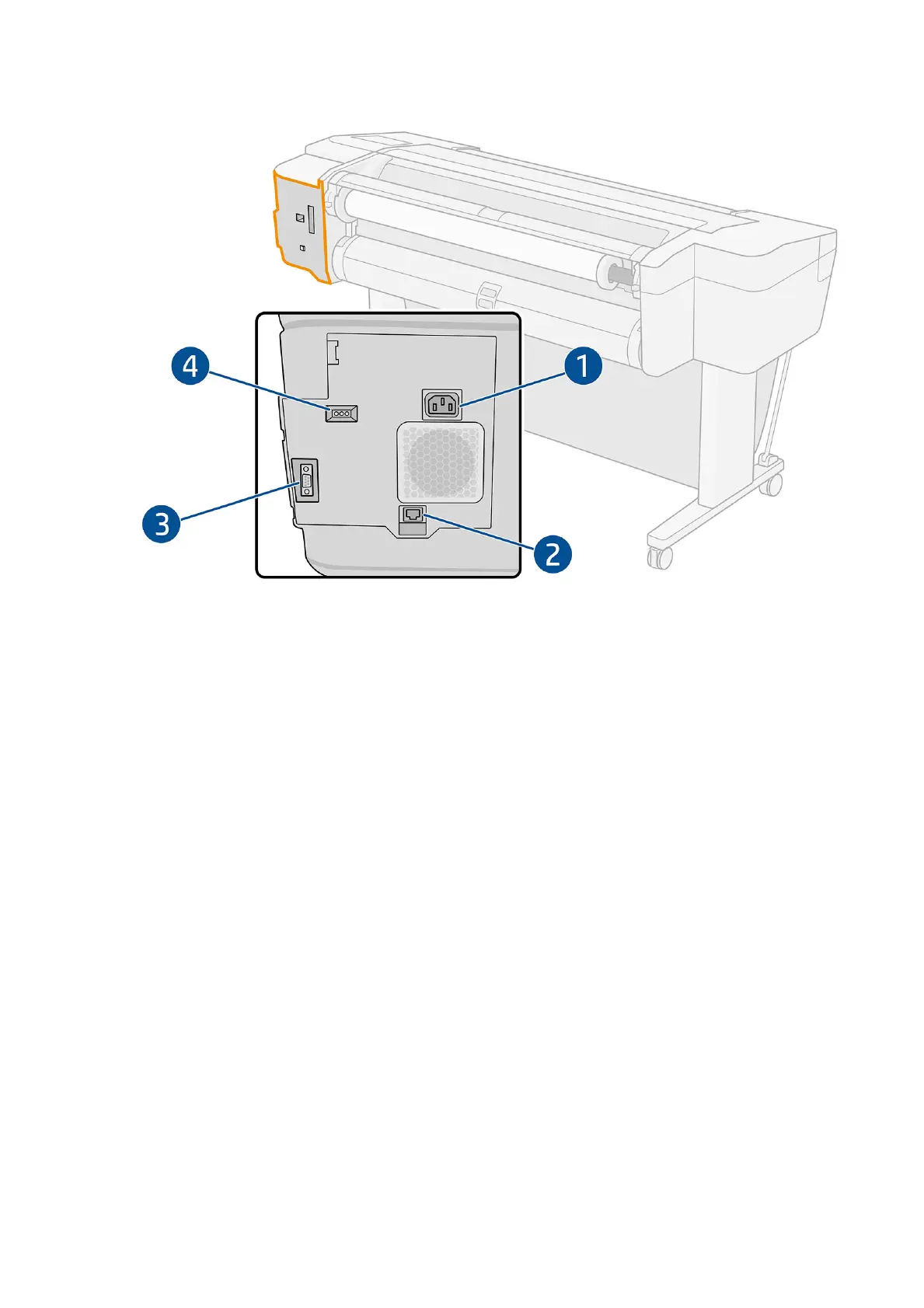

Communication ports

1. Power socket

2. Gigabit Ethernet port, to connect to a network

3. Communication port

4. Diagnostic LEDs, to be used by service engineers

The Hi-Speed USB host port is on the other side of the printer, beside the front panel.

8 Chapter 1 Introduction ENWW
