First look at the upper part of the print (part 1). Each colored rectangle should be a uniform color without any
horizontal lines across it.
Then look at the bottom part of the print (part 2). For each individual colored pattern, check that most of the
dashes are present.
If you see horizontal lines in part 1 and also missing dashes in part 2 for the same color, the printhead
responsible needs cleaning. However, if the rectangles look solid, do not worry about just a few missing dashes in
part 2; these are acceptable because the printer can compensate for a few clogged nozzles.

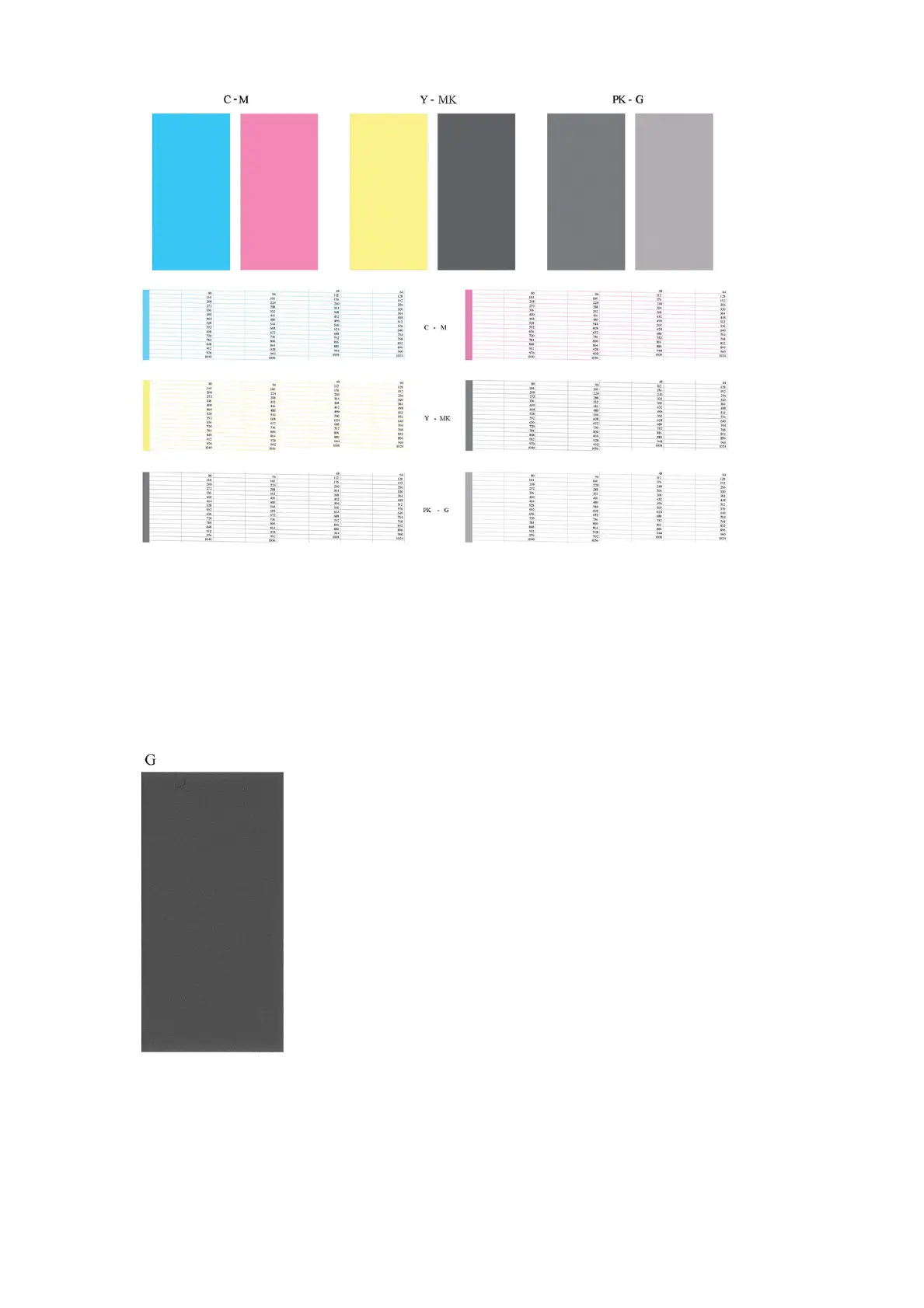

Here is an example of a gray printhead in a good state:
And here is an example of the same printhead in a bad state:
142 Chapter 15 Troubleshooting print-quality issues ENWW

HP DesignJet T1700dr Specifications

General

Color	Yes
Printing colors	Cyan, Grey, Magenta, Matte black, Photo black, Yellow
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	HP-GL/2, PDF 1.7, PostScript 3, TIFF, URF
Print speed (normal quality, A1)	116 pph
Accuracy	0.1 %
Media thickness	0.8 mm
Roll top margin	3 mm
Maximum print size	1118 x 1676 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Wi-Fi	-
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Sustainability certificates	ENERGY STAR
Package depth	770 mm
Package width	1955 mm
Package height	710 mm
Package weight	128000 g
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (off)	0.1 W
Power consumption (standby)	24 W
Power consumption (typical)	100 W
Storage media	HDD
Internal storage capacity	500 GB
Sound power level (standby)	5 dB

Weight and Dimensions

Depth	695 mm
Width	1802 mm
Height	998 mm
