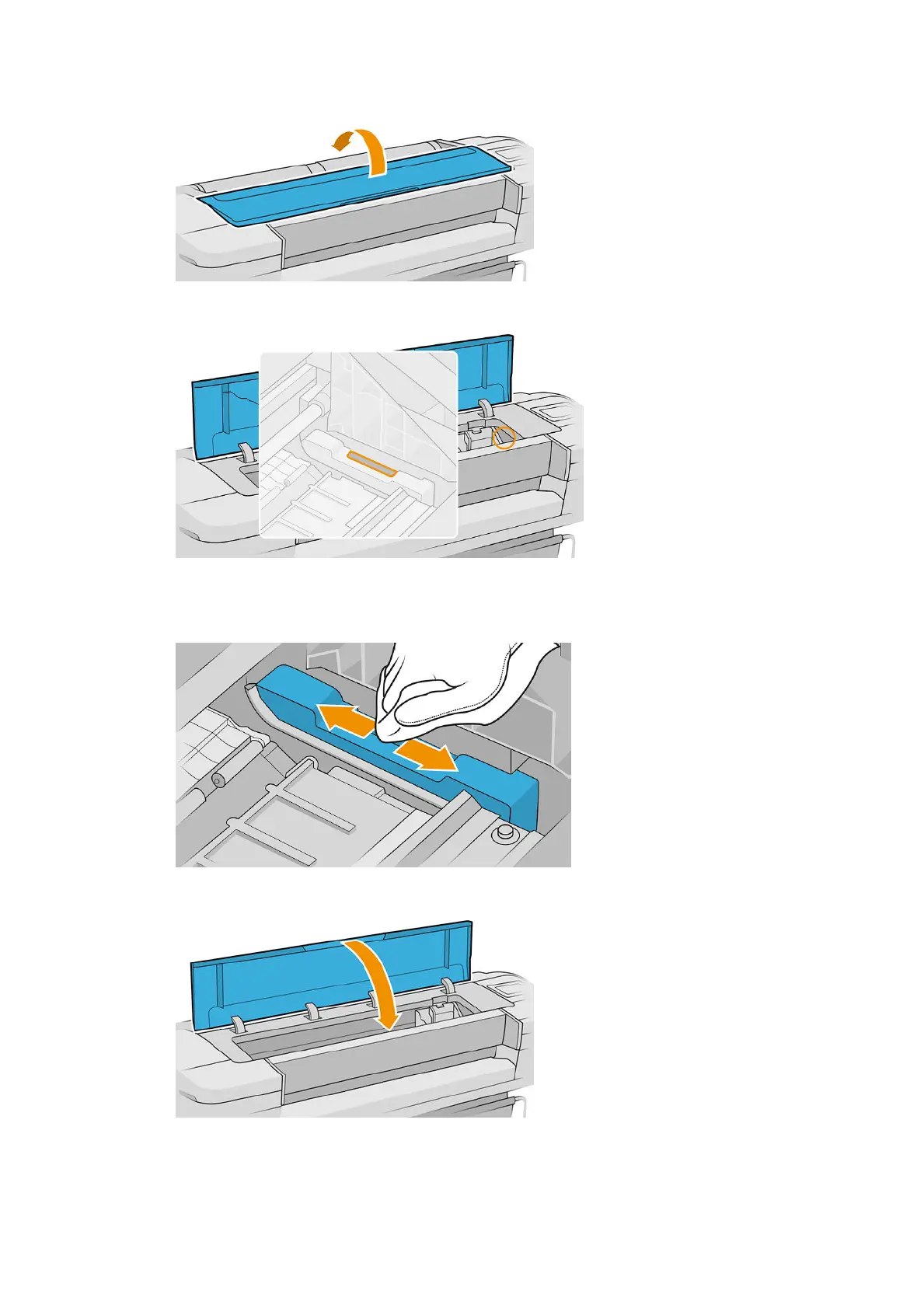

3. Open the window.

4. Find the printhead drop detector beside the stored printhead carriage.

5. Remove any debris blocking the printhead drop detector.

6. With a dry, lint-free cloth, wipe the surface of the drop detector to remove any non-visible debris.

7. Close the window.

148 Chapter 16 Troubleshooting ink cartridge and printhead issues ENWW
