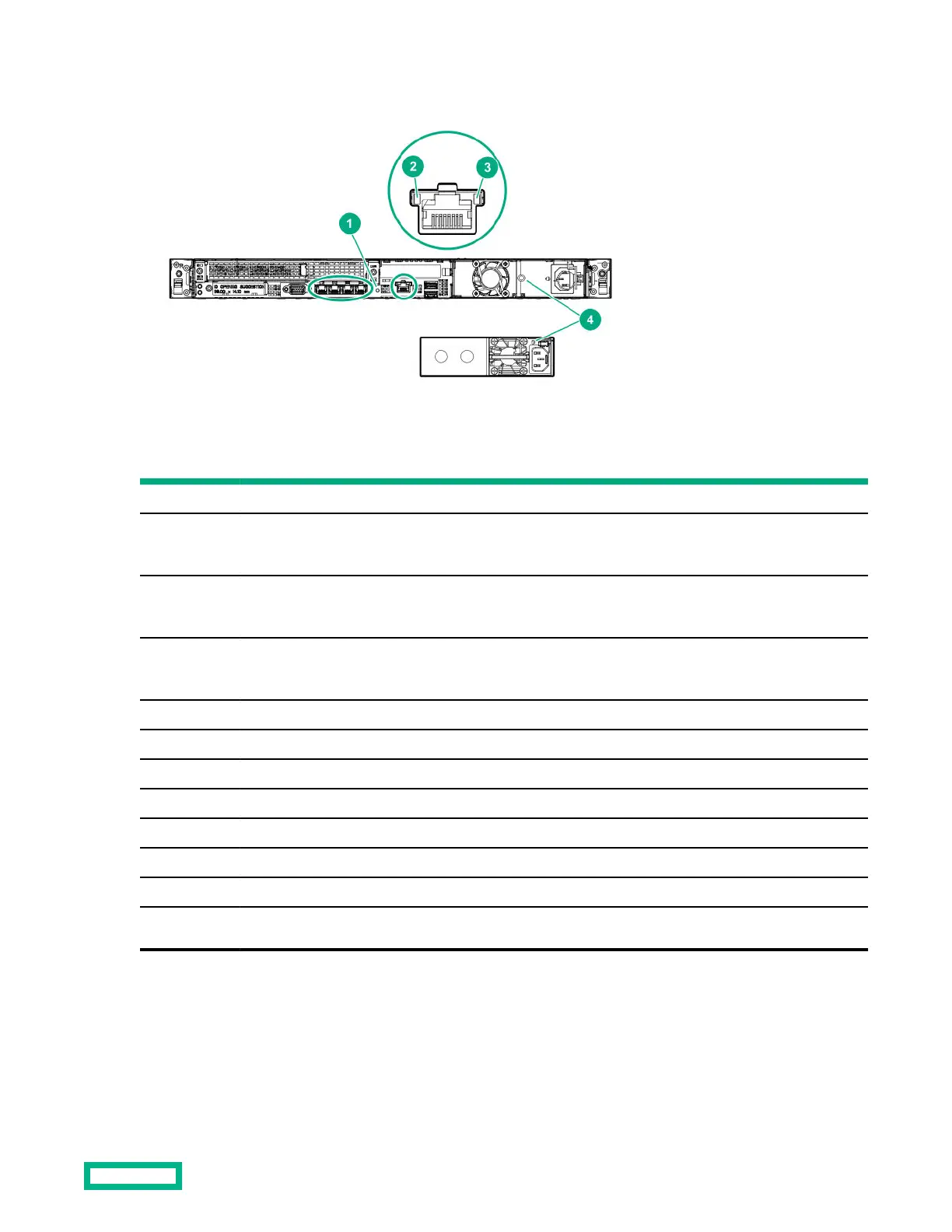

Rear panel LEDs
Item LED Status Definition
1 UID Solid blue Activated
Flashing blue
1 flash per sec = Remote management or
firmware upgrade in progress
4 flashes per sec = iLO manual reboot
sequence initiated
8 flashes per sec = iLO manual reboot
sequence in progress
O Deactivated
2 NIC link
1
Green Network link
O No network link
3 NIC status
1
Solid Green Linked to network
Flashing green Network active
O No network activity
4 Power supply Solid green Normal
O
System is o or power supply has failed.
1
For servers equipped with onboard NIC ports
Component identification 118
