Item Button Action
1 Do Not Remove
Press to open the release lever.
2 Power
Press to request PCIe ejection. Removal request can be denied by the:
• RAID controller (one or more of the logical drives could fail)
• Operating system

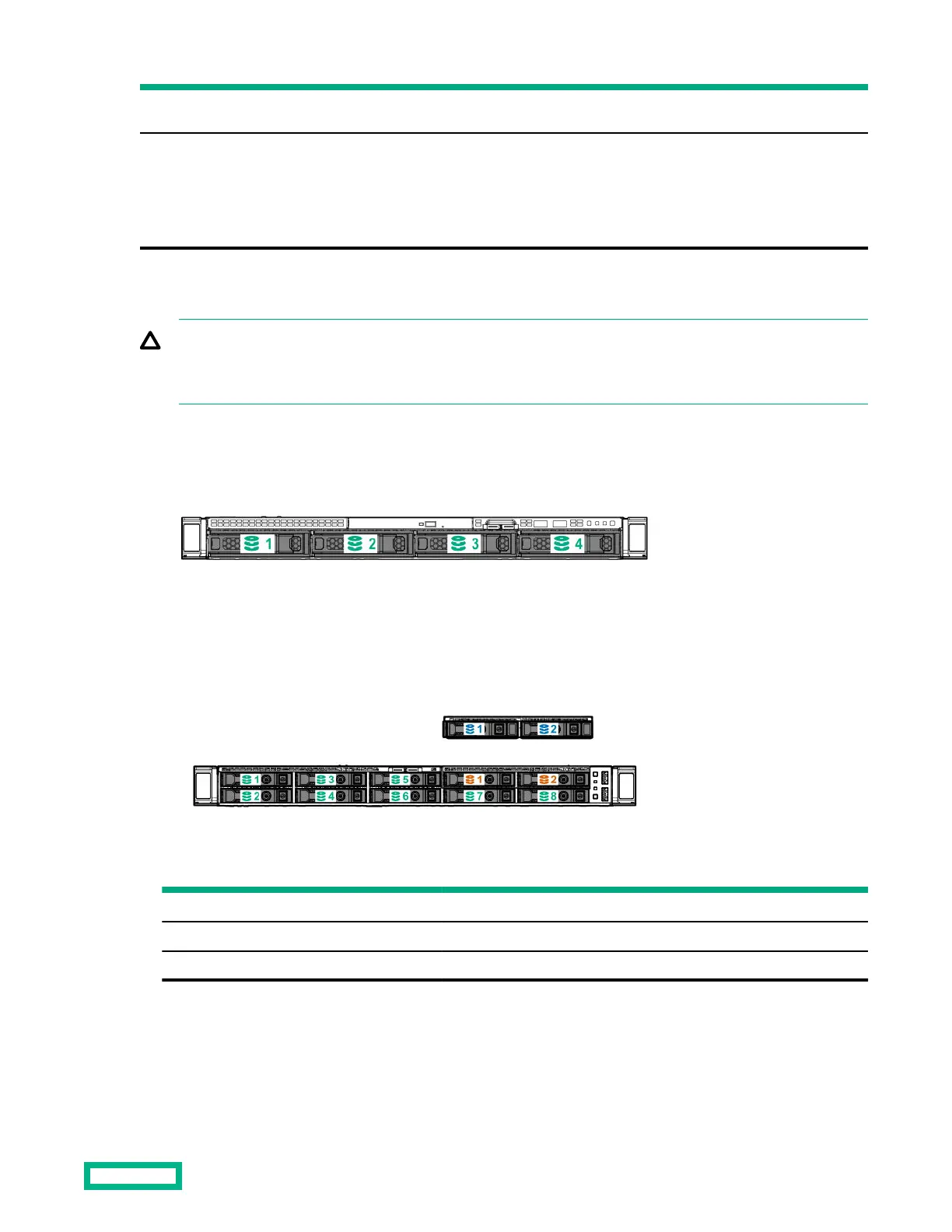

Drive bay numbering
CAUTION: When a server is purchased without any drive installed, some drive bays might be empty while other
drive bays might be populated with drive blanks.
To maintain proper system cooling, do not operate the server without a drive or a drive blank installed.
• LFF drive model
• SFF SAS/SATA drive model
Drive numbering colors
Description
Green 8SFF SAS/SATA drives
Blue 2SFF NVMe drives (optional)
Orange 2SFF SAS/SATA drives (optional)
• SFF NVMe drive model
Component identification
