Item LED Status Definition
Flashing green
(1 flash per second)
The drive is doing one of the following:
• Rebuilding
• Performing a RAID migration
• Performing a strip size migration
• Performing a capacity expansion
• Performing a logical drive extension
• Erasing
• Spare part activation
O
The drive is not configured by a RAID controller or a spare drive.

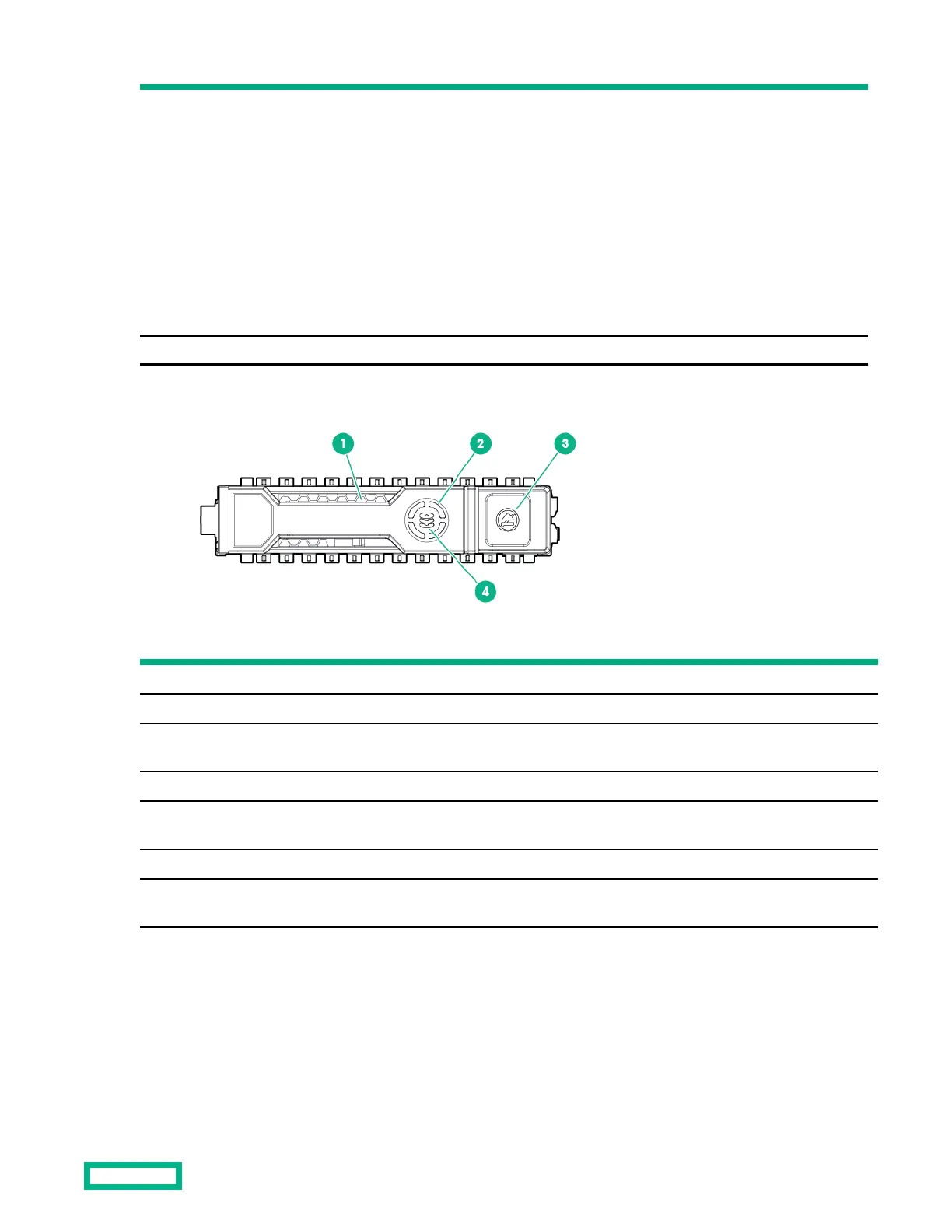

Smart Carrier (SC) drive LED definitions
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity
ring
Rotating green Drive activity
O No drive activity
3 Do not
remove
Solid white Do not remove the drive. Removing the drive causes one or more of the logical
drives to fail.
O Removing the drive does not cause a logical drive to fail.
4 Drive
status
Solid green The drive is a member of one or more logical drives.
Table Continued
Component identification 125
To Next Page
