a. Disconnect each power cord from the power source
b. Disconnect each power cord from the server.
4. Do one of the following:
• Extend the server from the rack.
• Remove the server from the rack.
5. Remove the access panel.
6. Disconnect the front I/O cable from the system board.

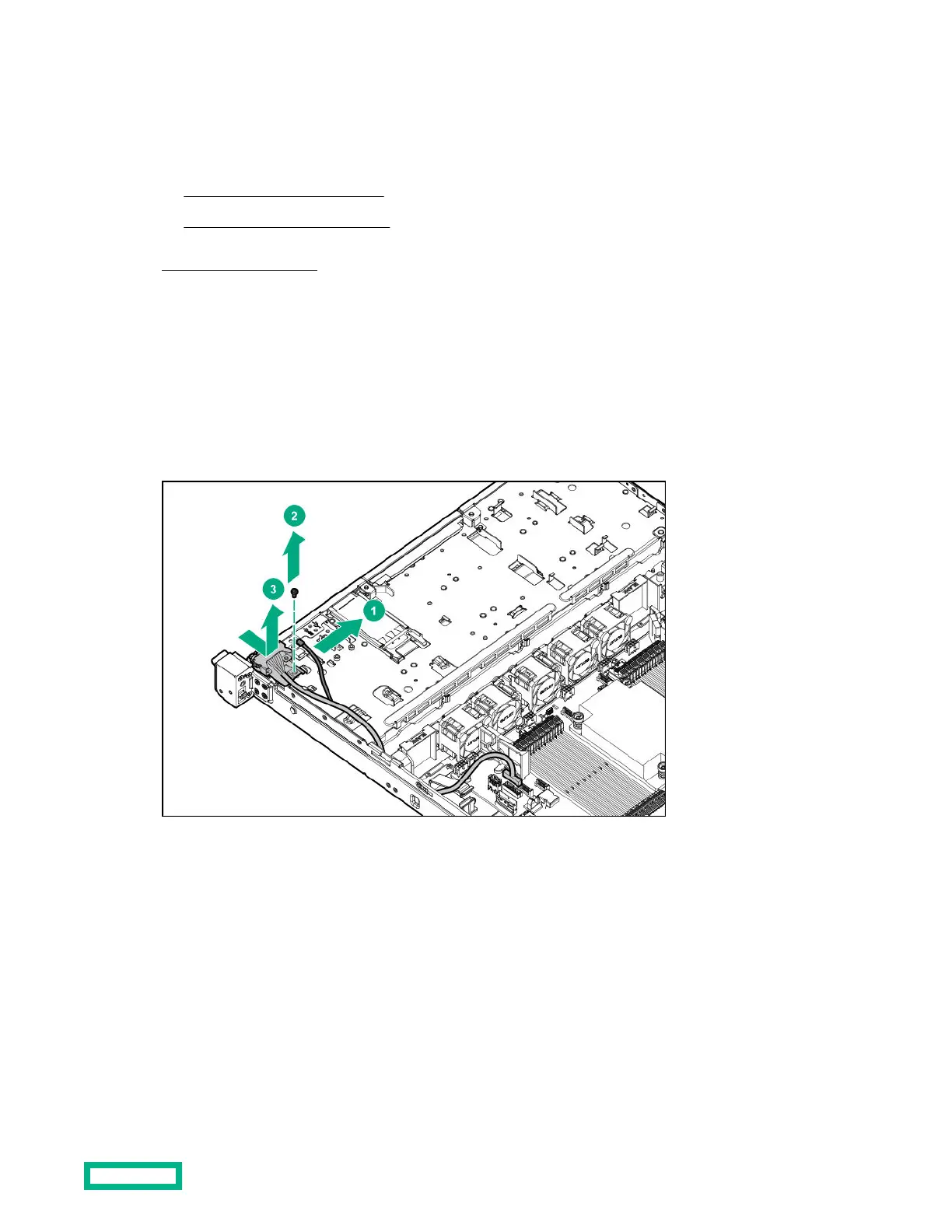

7. Release the front I/O cable from the clips.
8. Remove the front I/O assembly.
a. Detach the ambient thermal sensor cable from its clip.
b. Remove one T-10 screw.
c.
Remove the front I/O module.
To replace the component, reverse the removal procedure.
Removing and replacing the SFF front I/O assembly
Prerequisites
Before you perform this procedure, make sure that you have the following tools available.
• T-10 screwdriver
• T-15 screwdriver
