• Slot 3
Item Description

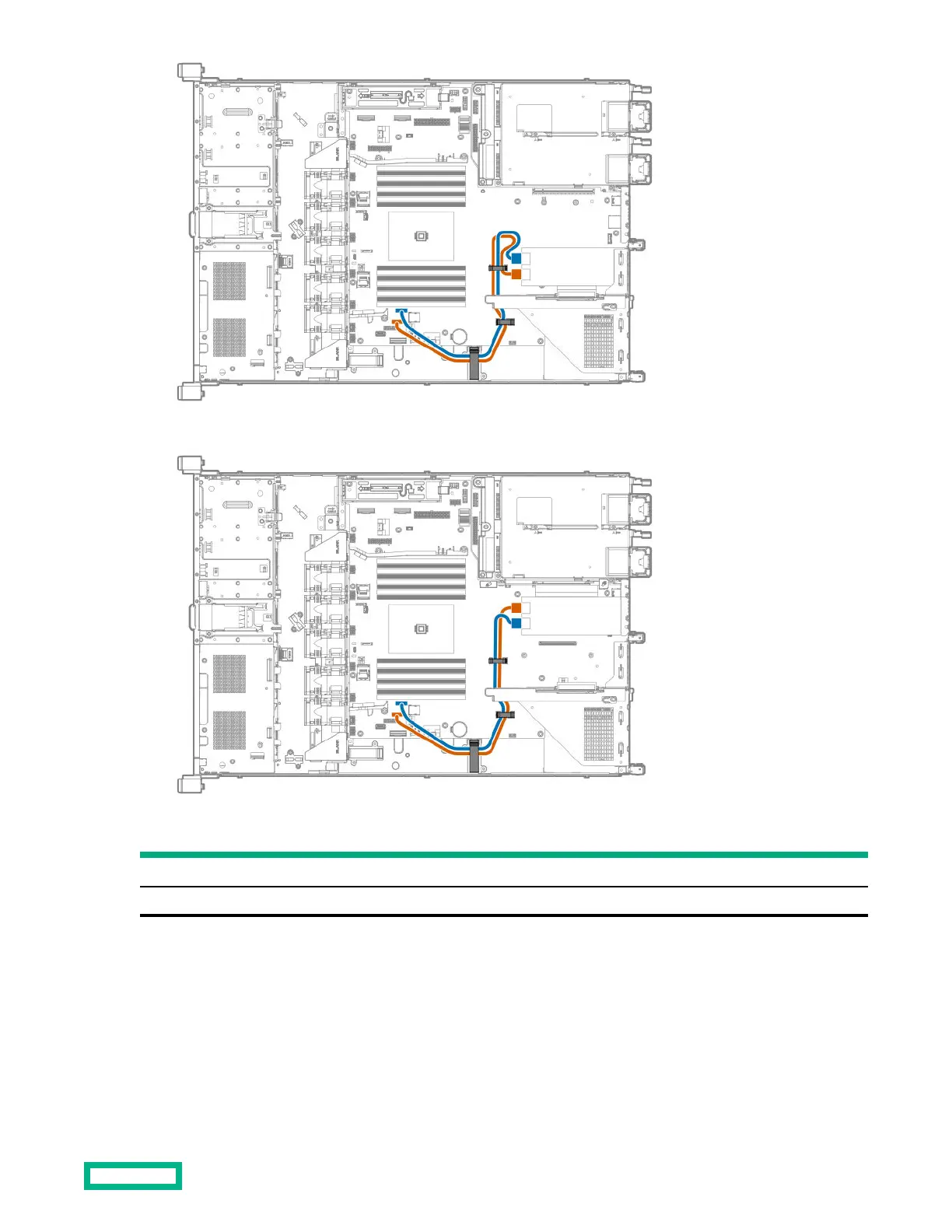

Blue SATA cable from M.2 enablement board port 1 to x1 SATA port 3 on system board
Orange SATA cable from M.2 enablement board port 2 to x1 SATA port 4 on system board
Cable routing: Controller backup power cable
Depending on the controller option installed, the actual storage controller connectors might look dierent from what is
shown in this section.
• Slot 1
Cabling
151
