HP HPE ProLiant DL325

To Next Page

To Previous Page

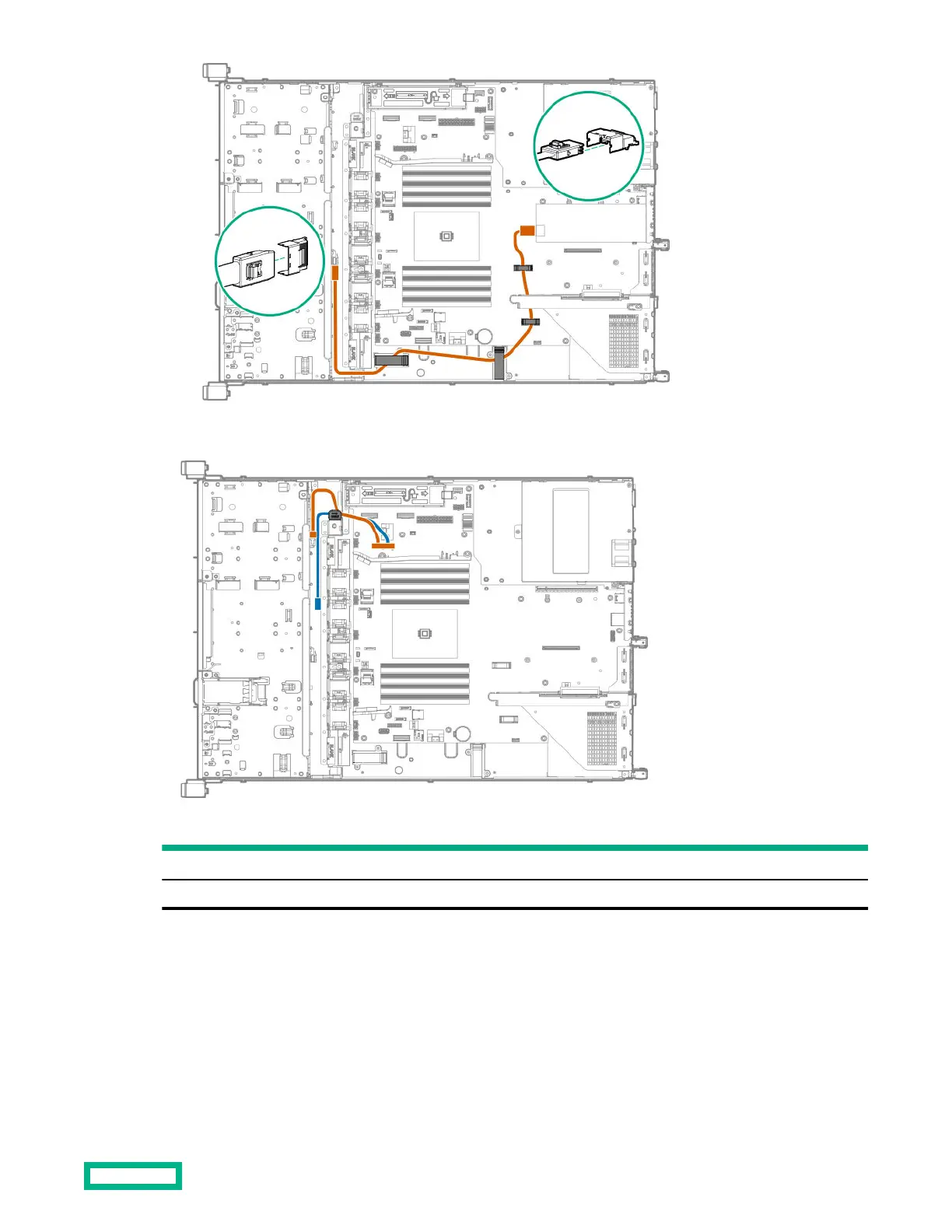

• 4LFF drive power cable

Cable color Description

Orange Power cable from system board to drive backplane

Blue Power cable from system board to ODD (reserved)

Cable routing: 8SFF SAS/SATA drive model

• 8SFF drive connected to system board

Cabling

137
