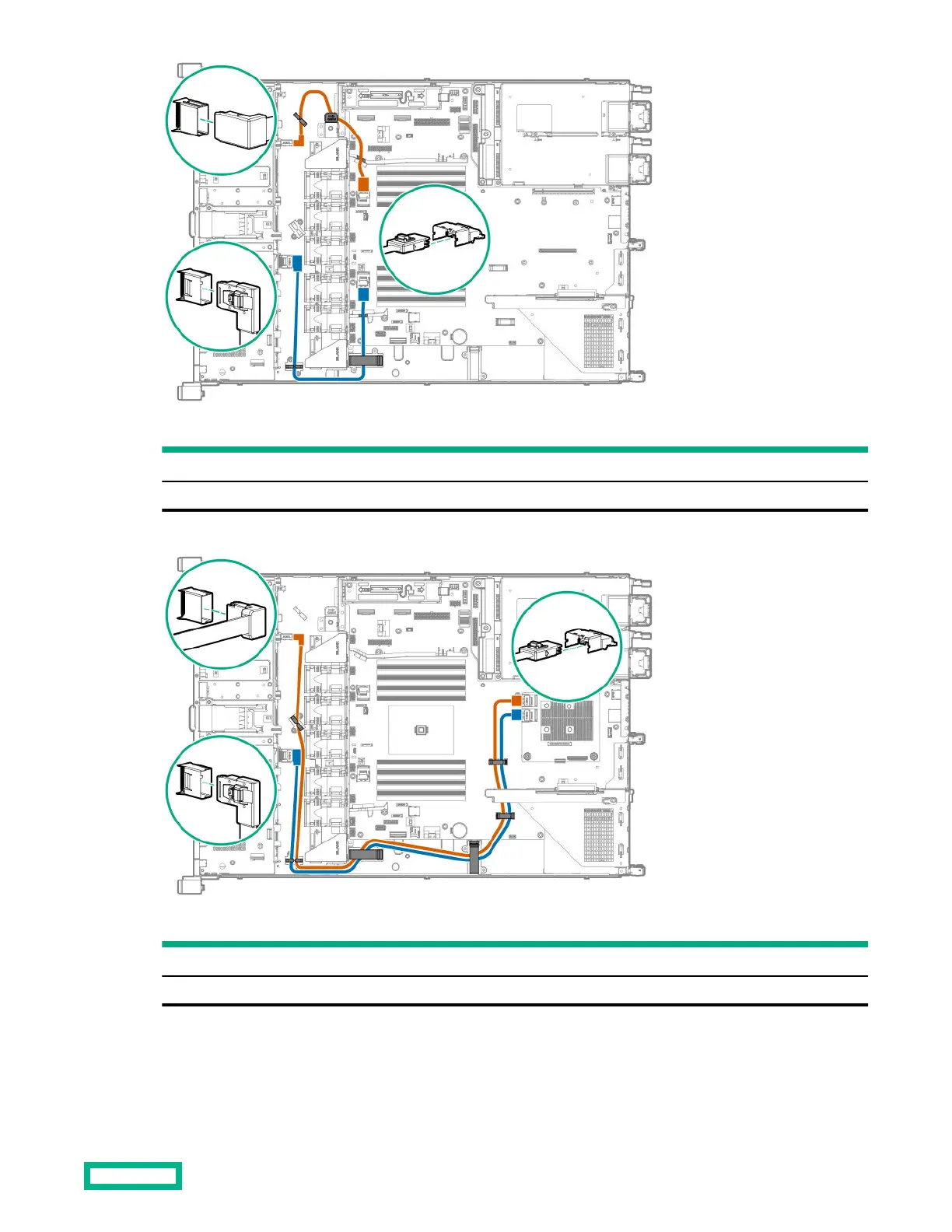

Cable color Description
Orange SATA cable from port 1 backplane to port 1 system board
Blue SATA cable from port 2 backplane to port 2 system board
• 8SFF drive connected to type-a controller
Cable color
Description
Orange Mini-SAS cable from port 1 backplane to port 1 type-a controller
Blue Mini-SAS cable from port 2 backplane to port 2 type-a controller
• 8SFF drive connected to type-p controller
◦ Slot 1
Cabling
138
