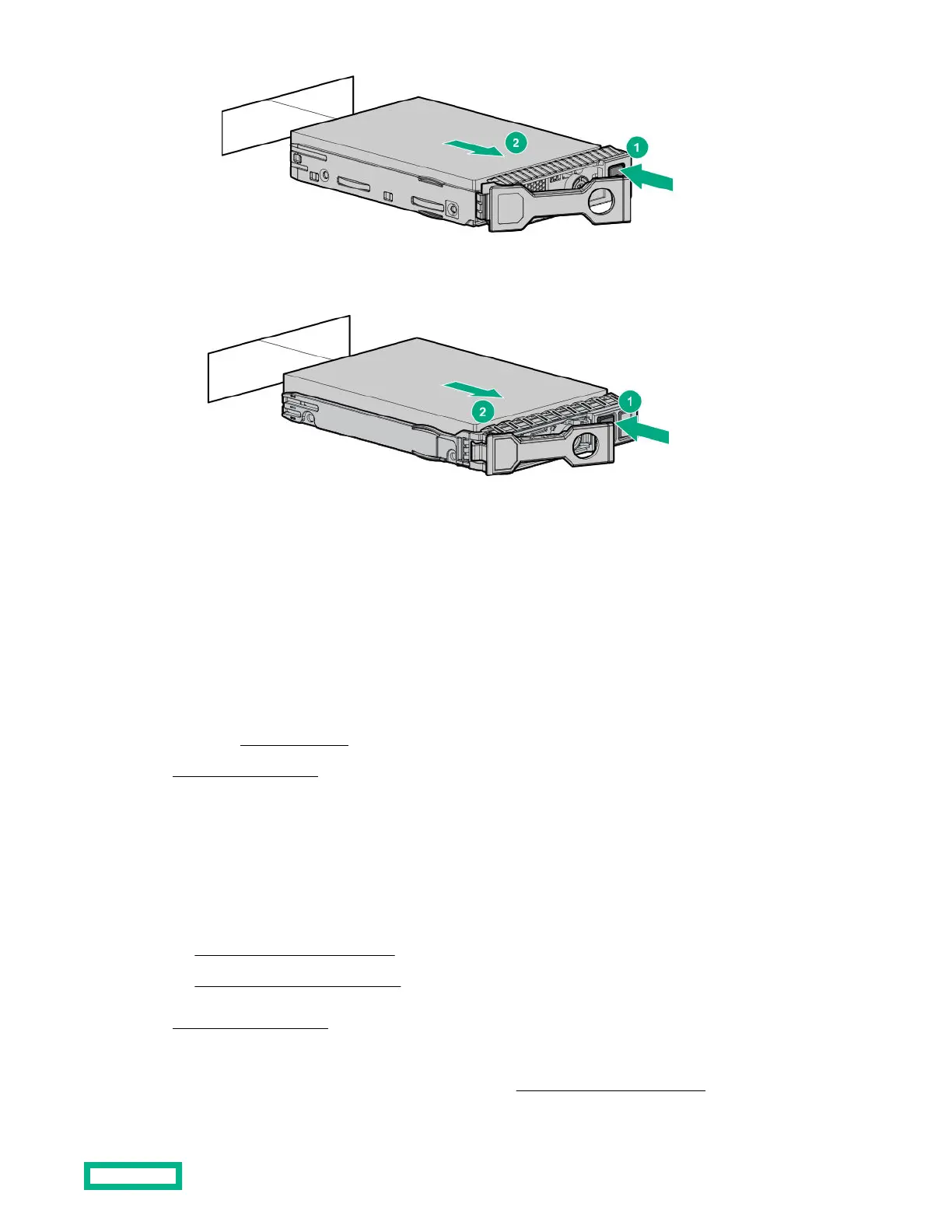

• NVMe drive
To replace the component, reverse the removal procedure.
Removing and replacing an M.2 SSD
Prerequisites
Before you perform this procedure, make sure that you have a Philips No. 1 screwdriver available.
Procedure
1.
If installed,
remove the bezel.
2.
Power down the server.
3.
Remove all power:
a.
Disconnect each power cord from the power source
b. Disconnect each power cord from the server.
4. Do one of the following:
•
Extend the server from the rack.
•
Remove the server from the rack.
5. Remove the access panel.
6. Disconnect the SATA cables from the M.2 SSD enablement board.
7. If replacing the M.2 SSD enablement on the primary riser,
remove the primary riser cage.
Removal and replacement procedures
46
