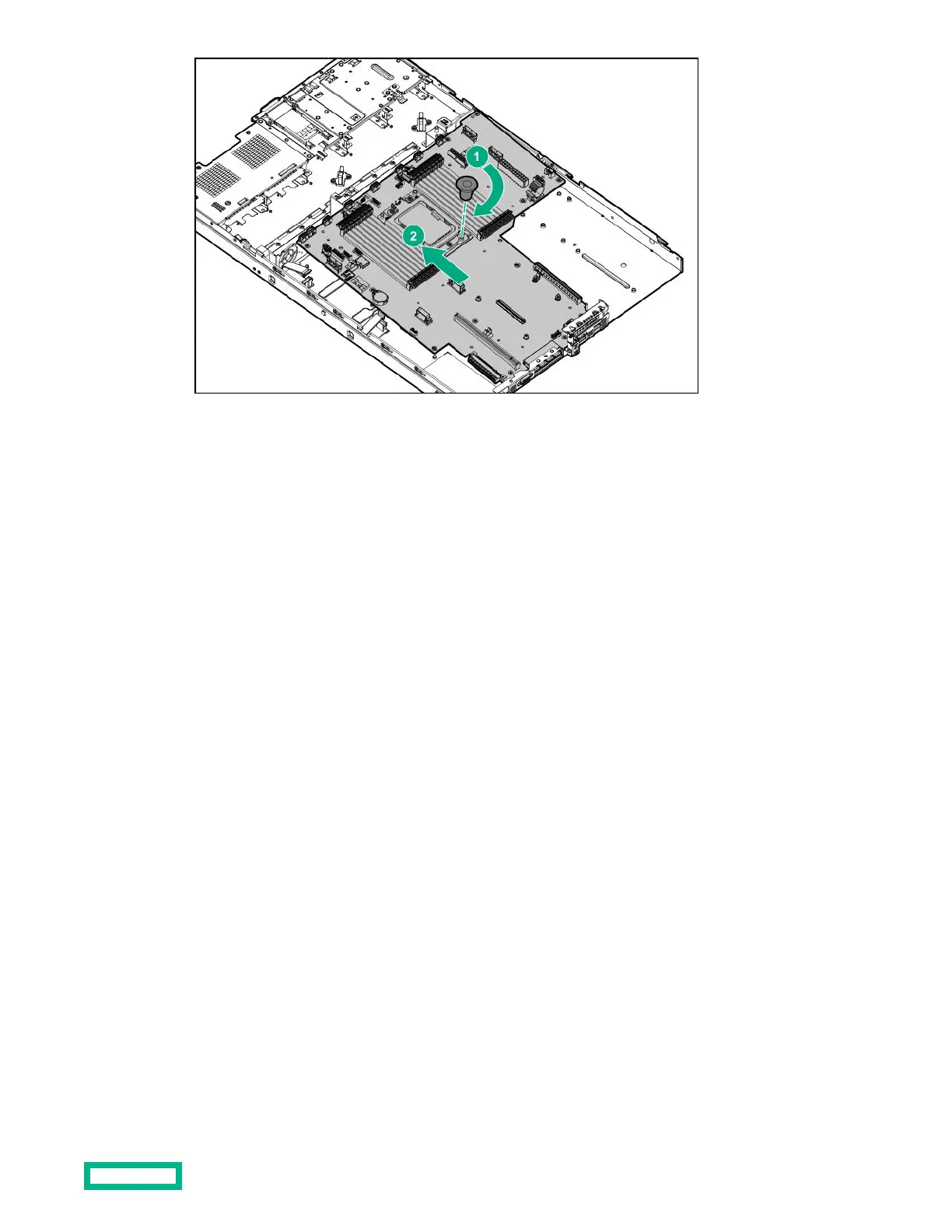

22. Remove the handle from the system board.
Replacing the system board
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• T-15 screwdriver (for system board screws)
• T-20 screwdriver (processor and heatsink screws)
• Thermal grease (Spare part number: 777298-001)
Procedure
1.
Install the spare system board.
a.
Install the system board handle on the spare system board.
b.
Place the spare system board in the chassis, holding the handle.
Removal and replacement procedures
99
