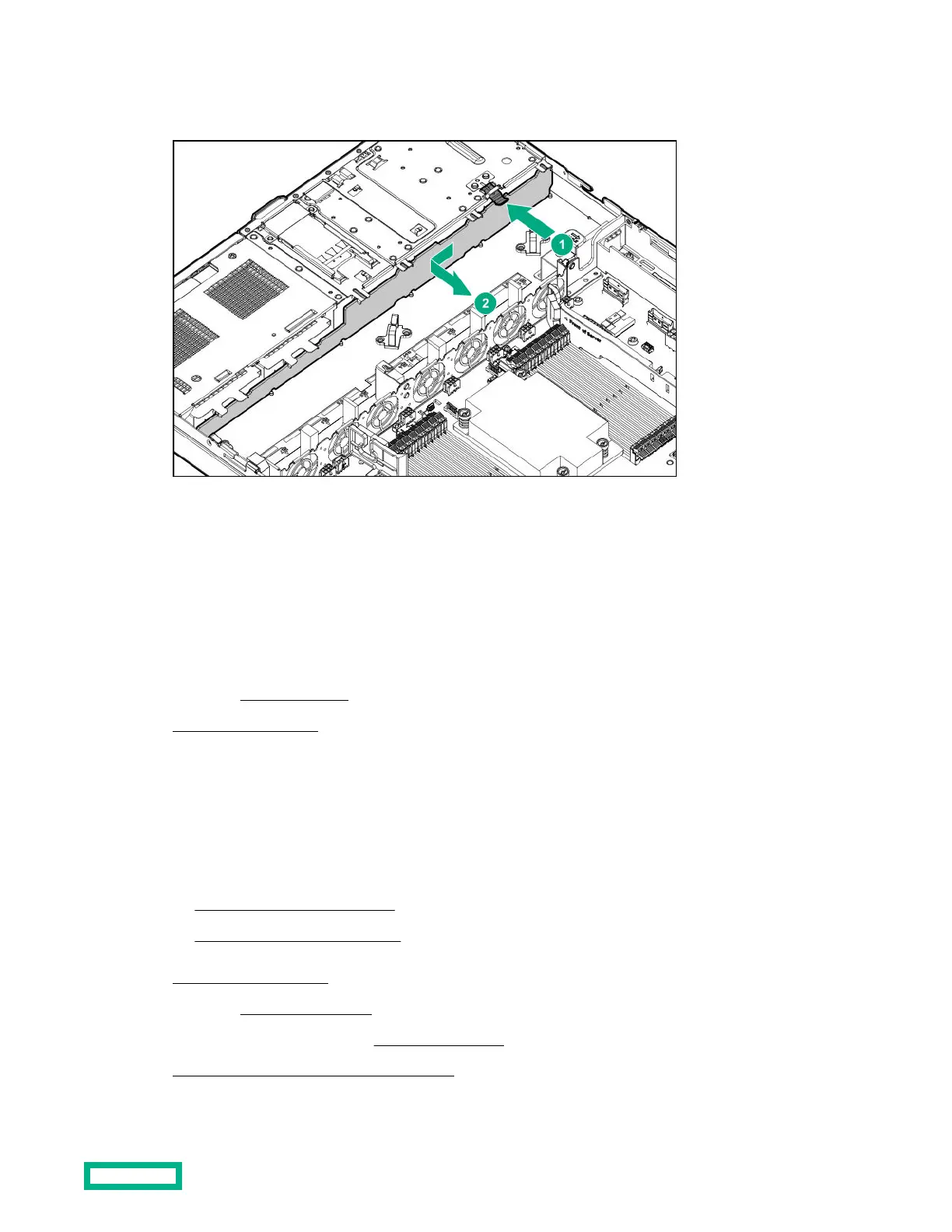

a. Pull up the latch.
b. Slide the backplane and remove it from the chassis.
To replace the component, reverse the removal procedure.
Removing and replacing the 2SFF SAS/SATA or NVMe drive backplane
Prerequisites
Before you perform this procedure, make sure that you have T-10 Torx screwdriver available.
Procedure
1.
If installed, remove the bezel.
2.
Power down the server.
3.
Remove all power:
a.
Disconnect each power cord from the power source.
b.
Disconnect each power cord from the server.
4. Do one of the following:
•
Extend the server from the rack.
• Remove the server from the rack.
5.
Remove the access panel.
6. If installed, remove the air bale.
7. Remove the fans/fan blanks from
fan bay numbers 4-7.
8. Remove the 2SFF SAS/SATA or NVMe drives.
9. Disconnect all cables from the 2SFF SAS/SATA or NVMe drive cage.
Removal and replacement procedures
49
