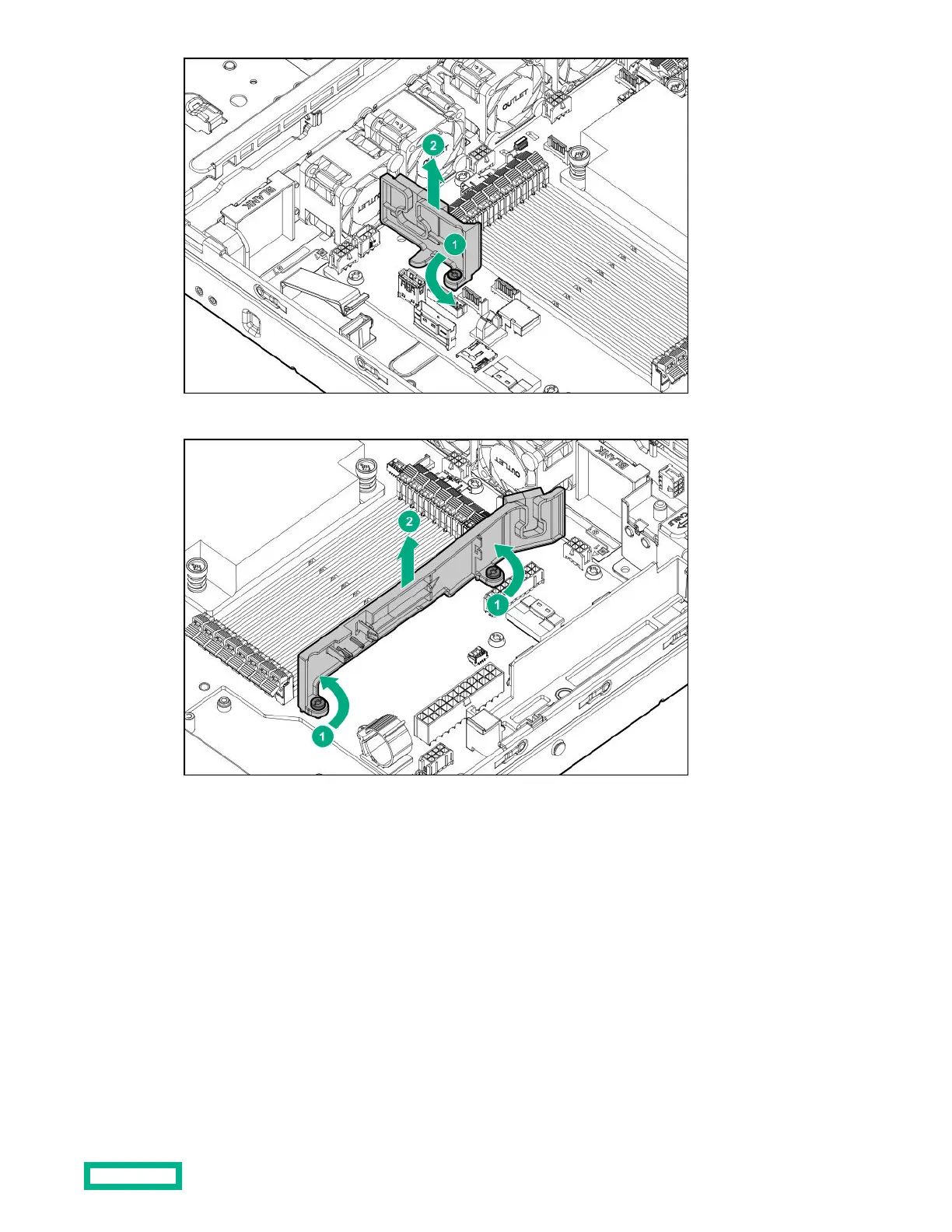

• Left DIMM guard
To replace the component, reverse the removal procedure.
DIMM-processor compatibility
The installed processor determines the type of DIMM that is supported in the server:
• AMD EPYC 7xx1 processors support DDR4-2666 DIMMs.
• AMD EPYC 7xx2 processors support DDR4-2933 DIMMs.
Mixing DIMM types is not supported. Install only the supported DDR4-2666 or DDR4-2933 DIMMs in the server.
Removal and replacement procedures
84
