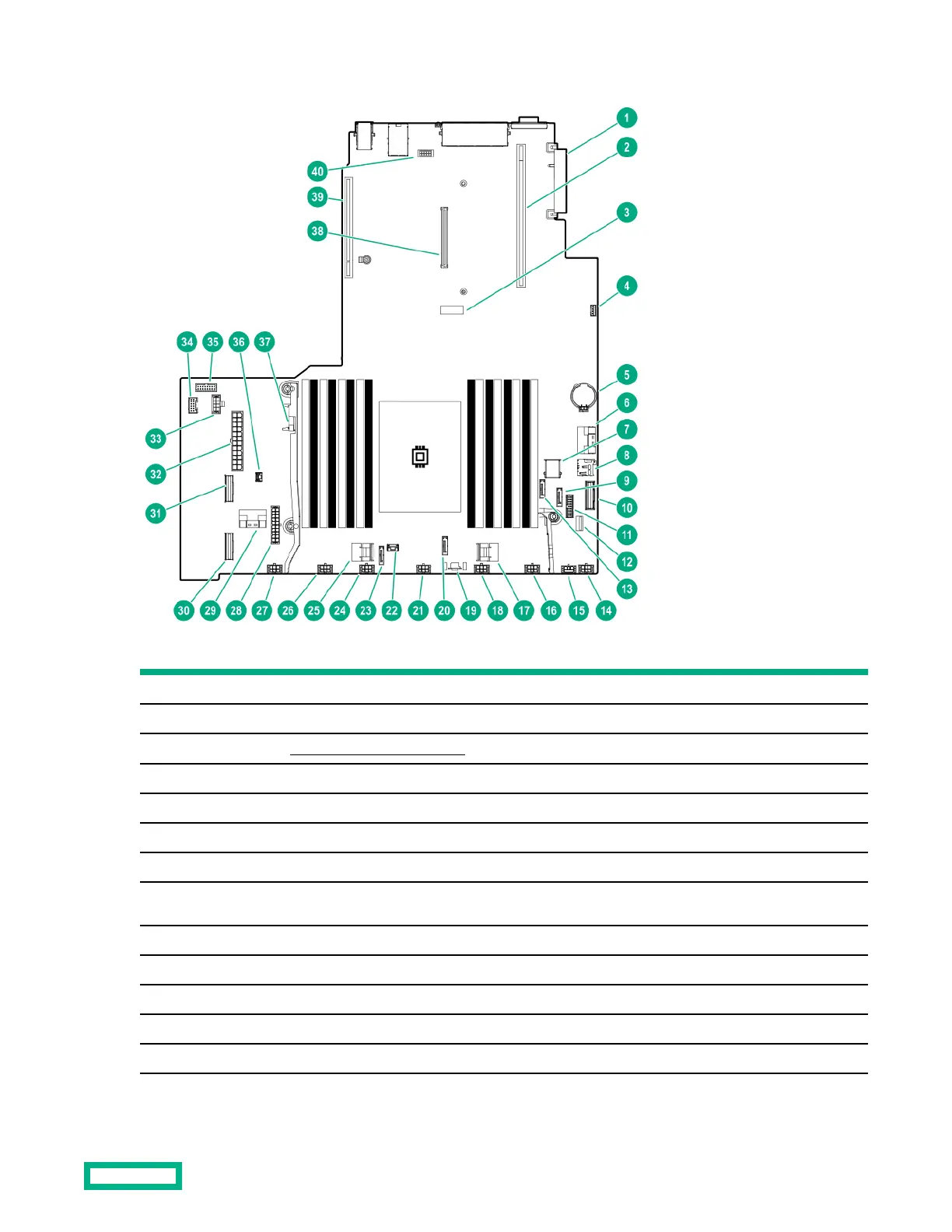

System board components
Item Description
1 FlexibleLOM connector
2 Primary PCIe riser connector
3 System maintenance switch
4 iLO Service Port connector
5 System battery
6 NVMe connector port 4A
7 Internal USB 30 connector
8
microSD card slot
1
9 x1 SATA port 4
10 NVMe connector port 5A
11 Front I/O connector
12 Front USB 30 connector
13 x1 SATA port 3
Table Continued
Component identification 119
